VDM-101HD
10.1" In-Vehicle Monitor (16:10) 1280×800 High Resolution / 500 nits / 1000:1 Contract Ratio / Projected Capacitive Touch / DC 9~48V / Front Panel IP65
LCD
| Screen Size / Ratio |
10.1 inches / 16 : 10 |
|---|---|
| Resolution |
1280 (H) × 800 (V) RGB |
| Active Area (mm) |
218.16 (H) × 136.80 (V) mm |
| View Angle (H/V) |
80 / 80 / 80 / 80 Degree |
| Brightness (nits) |
500 nits (typical) |
| Contrast Ratio |
1000 : 1 (typical) |
| Backlight Type |
LED |
Touch
| Type |
Projected Capacitive with Multi-touch |
|---|

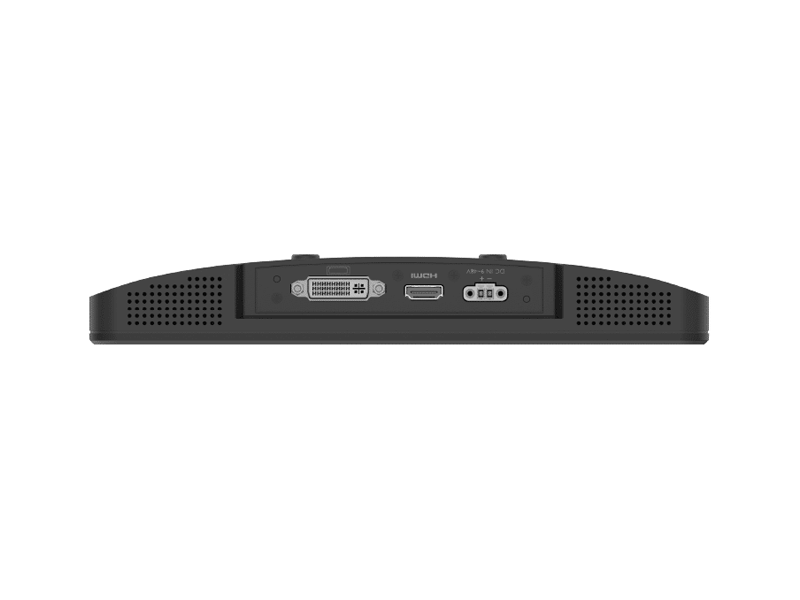

I/O
| DVI |
1 x DVI-D 29 pins Connector for DVI-D Single Link Video |
|---|---|
| Line-in |
1 |
| Mic-out |
1 |
| Secondary Video Input |
1 x HDMI |
| Function Key |
6 x Touch Hotkeys |
Audio
| Microphone |
2 x Bulit-in Digital MIC |
|---|---|
| Speaker |
Stereo Speaker with Built-in Amplifier |
Power
| Power Input |
9V – 48V DC Power Input |
|---|
Mechanical
| Dimension |
247.84 (L) x 178.59 (W) x 36.36 (H) mm |
|---|---|
| Weight |
900g |
| Mounting |
VESA MIS-D 75 mm |
| IP Rating |
(Front) IP65 |
Environment
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
|---|---|
| Operating Temp. |
-20°C ~ 60°C with 0.6 m/s airflow |
| Storage Temp. |
-40°C ~ 80°C |
| Vibration |
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock |
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) |
Certification
| Certification |
CE, FCC Class A, E-Mark, EN50155 |
|---|
Ordering Information
| Mode Number |
VDM-101HD |
|---|---|
| Description |
16:10 10.1" 500nits In-Vehicle Monitor w/ P-CAP Multi-touch |
| State of Origin |
Taiwan |
