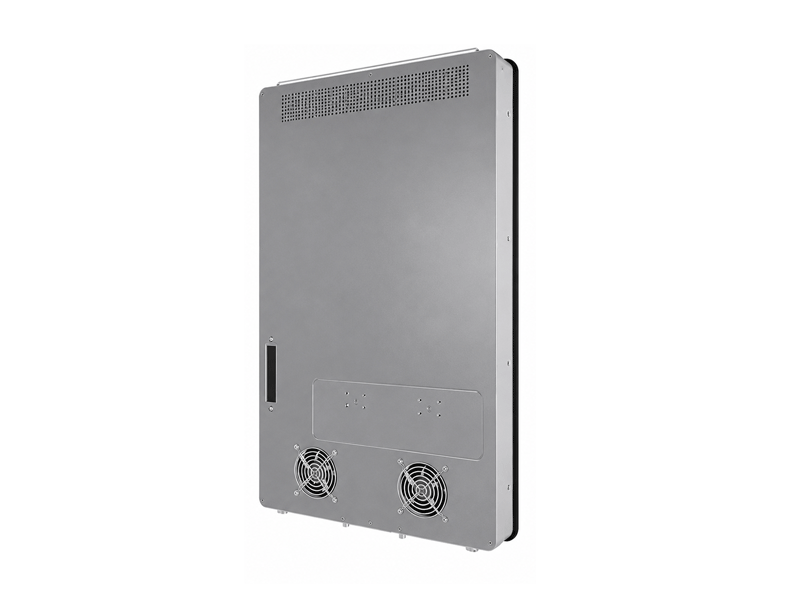

SPD-270T
27" Outdoor Open Frame Touch Display for Smart Infrastructure
27" Open Frame Portrait Display
700-Nit High-Brightness LCD
10-Point Projected Capacitive Touch
IK10 Front Impact Protection
Open Frame Design for Kiosk Integration
Designed for Outdoor Kiosks and Smart City Applications
The SPD-270T is a 27-inch outdoor open frame touch display engineered for self-service kiosks, ticketing terminals, EV charging stations, and smart city infrastructure. Featuring optical bonding, a 10-point projected capacitive touch interface, and an open frame architecture for seamless kiosk integration, it delivers reliable performance and excellent visibility in demanding outdoor environments.
| Size |
27-inch |
|---|---|
| Brightness |
700 nits (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Resolution |
1080 x 1920 |
| Active Display Area (mm) |
598.6 (H) × 337.1 (V) |
| Viewing Angle |
R/L/U/D: 89/89/89/89 |
| Frame Rate (Hz) |
60Hz (Typ.) |
| Response Time (ms) |
14ms (Typ.) |
| Aspect Ratio |
Full, Native, 4:3, 5:4, 16:9, 1:1 |
| Color Depth |
16.7M |
| MTBF |
30,000hrs |
| Sensor |
Ambient Light Sensor, Thermal Sensor, Temperature Sensor |
| I/O Ports |
HDMI, DVI-D |
| Touch Screen |
10 points P-CAP touch |
| Remote Control |
RS232 |
| Keypad |
Menu, Up, Down, Power |
| Dimension (W x H x D) |
728.1x 422.5 x 71 mm |
| Safety/ EMC |
UL, CB, FCC, CE |
| Environmental |
Operating Temperature : -20 ~ +70°C |
