SBOX-2625-SF
Intel® Twin Lake Processor N150 Ultra-Compact Embedded Computer
Application: Smart Factory

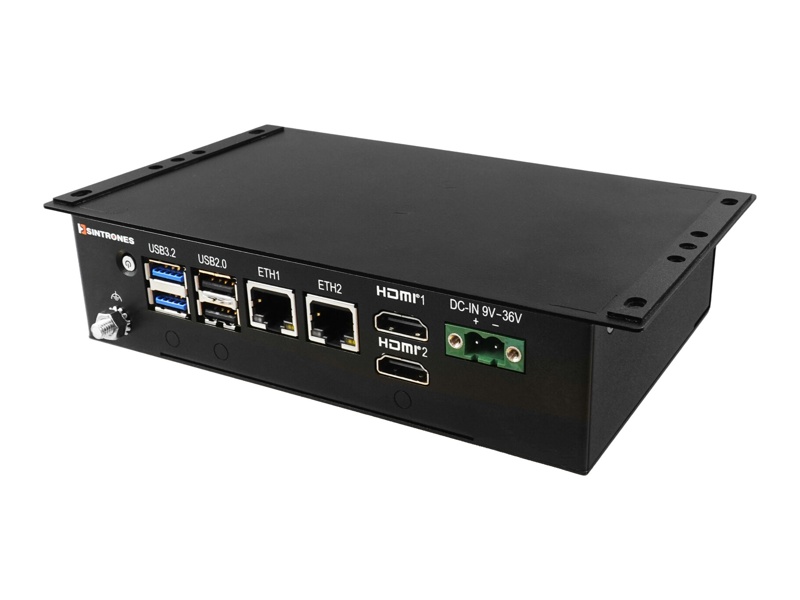

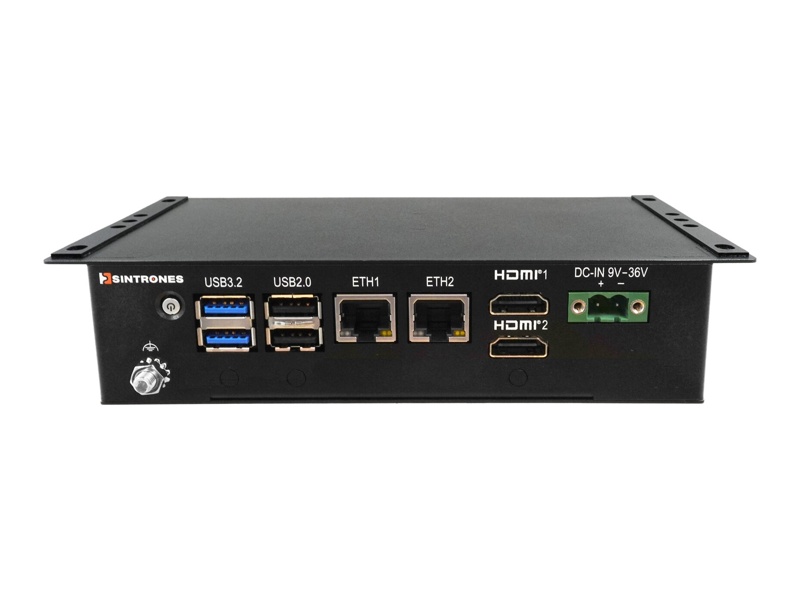

SBOX-2625-SF is a compact fanless embedded computer powered by the Intel® Twin Lake N150 processor. Its 182 x 106 x 40 mm steel enclosure and wall mounting support space-constrained industrial cabinet installations, with dual 2.5GbE and dual HDMI for equipment networking and local displays.
The -SF family offers three I/O configurations: six USB ports on the base model, four USB ports plus DIO on the -2S variant, or four USB ports plus a third COM port on the -3S variant. DDR5 memory, TPM 2.0 and optional wireless expansion support industrial data acquisition and equipment integration.
Operating temperature is -30°C to 60°C with 0.6 m/s airflow, tested with the system mounted on a 300 x 300 x 5 mm aluminum heat spreader to simulate in-cabinet thermal conditions.
System
| Processor | Intel® Twin Lake N150 4-core processor up to 3.60 GHz |
|---|---|
| Graphics | Intel® Graphics |
| Memory | 1 x DDR5-4800 SO-DIMM up to 16GB |
| Security | TPM 2.0 |
| Watchdog | Auto reset for unresponsive system |
Interface
| Video | 2 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b |
|---|---|
| Audio | 1 x Line-out, 1 x Mic-in |
| Ethernet | 2 x 2.5GbE (Intel I226-LM) via RJ-45 |
| USB | 2 x USB 3.2 Gen 1, 2 x USB 2.0 (SBOX-2625-SF-2S, SBOX-2625-SF-3S) |
| DIO | 4 x DI (DC 5-36V), 4 x DO (DC 5V/100mA) |
| COM | 2 x RS-232/422/485 (SBOX-2625-SF, SBOX-2625-SF-2S) |
Internal Expansion
Certification / Compliance
Power
| Power Input | DC 9-36V (nominal power input DC 12V/24V) via 2-pin terminal block |
|---|---|
| Power Protection | OCP, OVP, surge protection, reversed polarity protection |
Software
| Operating System | Windows 11 IoT Enterprise LTSC |
|---|
Storage
| Type | 1 x 2.5” SATA SSD |
|---|
Environmental
| Operating Temp. | -30°C ~ 60°C (-22°F ~ 140°F) with 0.6 m/s airflow * |
|---|---|
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Relative Humidity | 10% RH ~ 90% RH (non-condensing) |
Mechanical
| Construction | Steel |
|---|---|
| Antenna | 4 x SMA connector mounting hole |
| Mounting | Wall mounting |
| Net Weight | 720.5g (1.59 lb) |
| Dimensions (L x W x H) | 182 x 106 x 40 mm (7.17 x 4.17 x 1.57 in.) |
Ordering Information
| Model Number | SBOX-2625-SF-N150 |
|---|---|
| Description | Intel® Twin Lake N150 Ultra-Compact Embedded Computer |
| State of Origin | Made in Taiwan |
