In-Vehicle Computer

Intel Atom® x7835RE 8-core processor up to 3.6 GHz
Intel Atom® x7433RE 4-core processor up to 3.4 GHz

Processor-integrated GPU – Intel® UHD Graphics

1 x DDR5-4800 SO-DIMM up to 16 GB

TPM 2.0

Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

1 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.1

1 x Line-out

2 x 2.5GbE (Intel® I226-IT) via M12 X-code

2 x USB 3.2
2 x USB 2.0

8 x DI (DC 5-48V), 4 x DO (DC 12V/100mA)

2 × RS-232/422/485

1 x M.2 2280 Key M for NVMe SSD
1 x M.2 2280 Key M for NVMe/SATA SSD

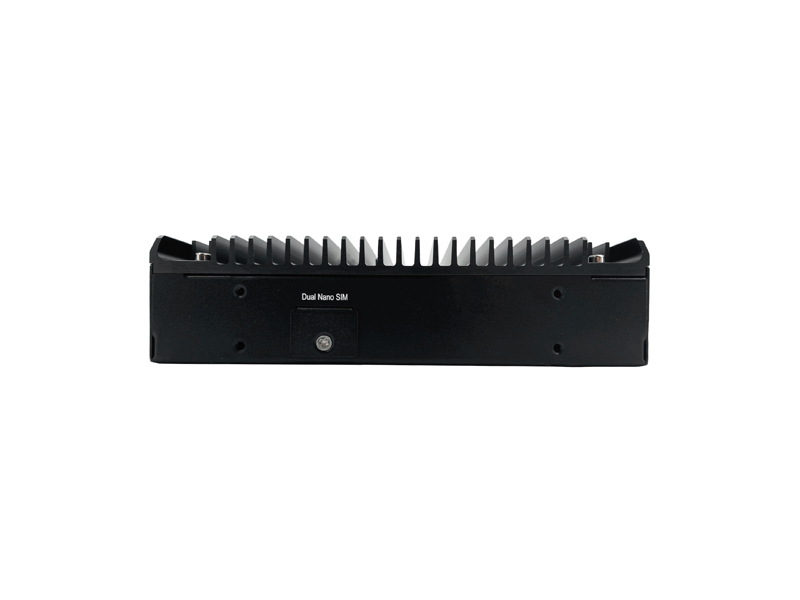

1 x M.2 3042/3052 Key B for WWAN w/ dual Nano SIM support
1 x M.2 2230 Key E for Wi-Fi/BT

DC 24-110V (Galvanic Isolation) via M12 K-code

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

Removable top cover for RTC coin cell battery

CE, FCC Class A, UKCA, EN 50155, EN 45545-2 (R25)

Windows 11 IoT Enterprise LTSC
Ubuntu 24.04 LTS

Aluminum Alloy

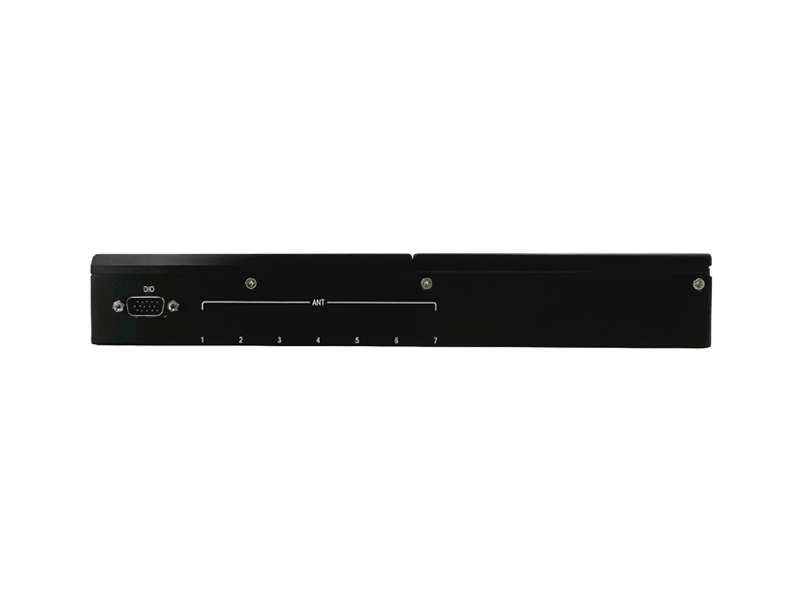

7 x SMA connector mounting hole

Rack/Wall mounting

285 x 165 x 43 mm (11.22 x 6.50 x 1.70 in.)

IP40

-40°C ~ 75°C (-40°F ~ 167°F) with 0.6 m/s airflow
*Operating temperature varies by accessories installed.

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH ~ 90% RH (non-condensing)

IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

RBOX-1001-M12X-zz (zz=A8=Atom® x7835RE, zz=A4=Atom® x7433RE

Intel Atom® x7835RE with 24-110VDC Galvanic Isolation Power Input Railway Computer

Taiwan
