In-Vehicle Computer IBOX-500, SINTRON Technology Corp.

IBOX-500

NXP® i.MX 8 QuadXPlus Automotive Grade SoC/ On-board LPDDR4 3GB/ On-board eMMC 5.1 32GB/ 1 x GbE/ 2 x RS-232/ 1 x DVI-D Single-Link/ 2 x USB 3.2

NXP i.MX 8 QuadXPlus Automotive Grade Soc ( AEC-Q100 Grade 3)

On-board LPDDR4 3GB and eMMC 5.1 32GB

Built-in Accelerometer, Gyroscope, and Magnetics Sensor

3 x CAN/ CAN FD

1 x DVI-D Single-Link (Sintrones proprietary pin define)

8 x DI, and 4 x DO and 2 x RS-232

1 x M.2 3042/3052 Key B, 1 x M.2 2242 Key B, 1 x M.2 Key A-E

1 x Micro-SD Slot

9-60V DC Power Input

Operating Temp.: -40°~ 70°C

Datasheet

IBOX-500 is an ultra-compact fanless in-vehicle Computer with 5G or LTE connectivity. It utilizes NXP i.MX 8QuadXPlus Automotive AEC-Q100 Grade 3 Processor up to 1.2 GHz. IBOX-500 features an ultra-compact design that can easily fit into restricted spaces. As robust connectivity, the system can select 5G, LTE, GPS, and Wi-Fi /Bluetooth by M.2 modules. It is the perfect solution for the digital cluster, intelligent cockpit, and fleet management. Furthermore, it features smarter vehicle power Ignition and can also effectively support cars in extreme weather and operating conditions, such as snowplows, Trucks, Buses, taxis, and Forklifts.

System

Processor	NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3) Integrated 4 x Arm Cortex@-A35 Cores Up to 1.2 GHz 1 x Am Cortex@-M4F Core Up to 264 MHz
Memory	On-board LPDDR4 3 GB
Sensor	Built-in Accelerometer, Gyroscope, and Magnetic Sensor
Watchdog	1 ~ 255 Level Reset

Graphics

Graphics Engine	CPU 1 x GC7000Lite with 4 x Vec4 shader cores (16 execution units)
DVI-I	1 x Single Link (SINTRONES proprietary pin define)
Max Resolution	1 x RJ-45 for GbE

Ethernet

Port	1 x RJ-45 for GbE

I/O

Serial Port	1 x RS-232 1 x RS-232/422/485
USB	2 x USB 3.2 5 Gbps 1 x USB 2.0 OTG
DIO	8x DI (5~60VDC) 4 X DO (5VDC, 100mA)

Storage

Type	Onboard eMMC 5.1 32 GB 1 x Micro SD Slot

Expansion

M.2	1 x M.2 3042/3052 Key B for WWAN w/ 1 x nano SIM Slot 1 x M.2 2242 Key B for GPS 1 x M.2 Key A-E for Wi-Fi

Power

Power Input	9V – 60V DC Power Input
Power Protection	Automatics Recovery Short Circuit Protection
Smart Ignition	Vehicle Power Ignition for Variety Vehicle
Power-off Delay Control	Power off Delay Time Setting by BIOS and Software

Mechanical

Dimension	214(L) x 150(W) x 43(H) mm
Weight	1000g
Construction	Stell
Mounting	Wall-mount

Environment

Relative Humidity	10% RH – 90% RH (non-condensing)
Operating Temp.	-40°C ~ 70°C ambient w/ 0.6m/s airflow
Storage Temp.	-40°C ~ 85°C
Vibration & Shock	IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating Operating: MIL-STD-810G, Method 516.6, Procedure, Trucks and semi-trailers=15G (11ms) with SSD

Certification

Certification	CE, FCC, Class A, E13, ECE, R118

Operational System

Linux	Yocto Linux

Ordering Information

Mode Number	IBOX-500
Description	NXP i.MX 8QuadXPlus Automotive Grade SoC/ Onbaord LPDDR4 3GB/ Onboard eMMC 5.1 32GB/ 1 x GbE/ 2 x RS-232/ 1 x DVI-D Single Link/ 2 X USB 3.2
State of Origin	Taiwan

IBOX-500

System

Graphics

Ethernet

I/O

Storage

Expansion

Power

Mechanical

Environment

Certification

Operational System

Ordering Information

Leave Your Message

Useful Links

Phone Number

Email address

Office Location

In-Vehicle Computer

IBOX-500

System

Graphics

Ethernet

I/O

Storage

Expansion

Power

Mechanical

Environment

Certification

Operational System

Ordering Information

Leave Your Message

Related Products

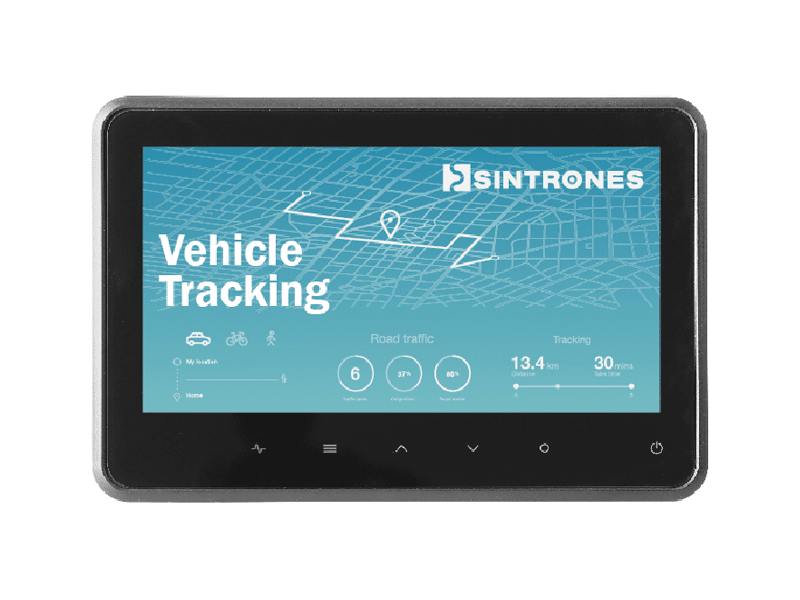

VDM-700HD
