VT-859K

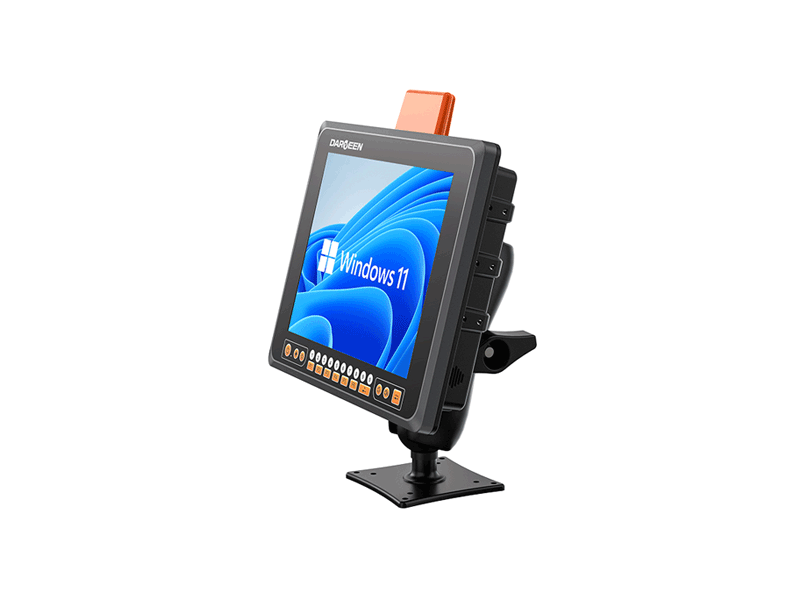

12.1" Windows Vehicle Mount Computer with Intel® Core™ i5 Processor
Display
| Size |
12.1 inch (4:3) |
|---|---|
| Touch Type |
VT-859K: 5-wire resistive touch, VT-859KC: Projected capacitive multi touch |
| Display Type |
TFT LCD |
| Resolution |
1024 x 768 |
| Luminance |
500 nits |
| Contrast Ratio |
700: 1 |
| View Angles |
80 (left), 80 (right), 80 (up), 80 (down) |
| Color |
16.2M |
System
| CPU |
Intel® Core™ i5-8265U (quad core, 2.0 GHz) |
|---|---|
| Chipset |
8th gen Intel® Whiskey Lake-U Processor SoC |
| Memory |
8GB DDR4-2400 SO-DIMM (up to 16GB) |
| Storage |
256GB M.2 SSD (up to 1TB) |
| Graphics |
Intel® HD Graphics |
| BIOS |
AMI UEFI BIOS |
Keypad & Keyboard
| Keypad |
Power on/off |
|---|

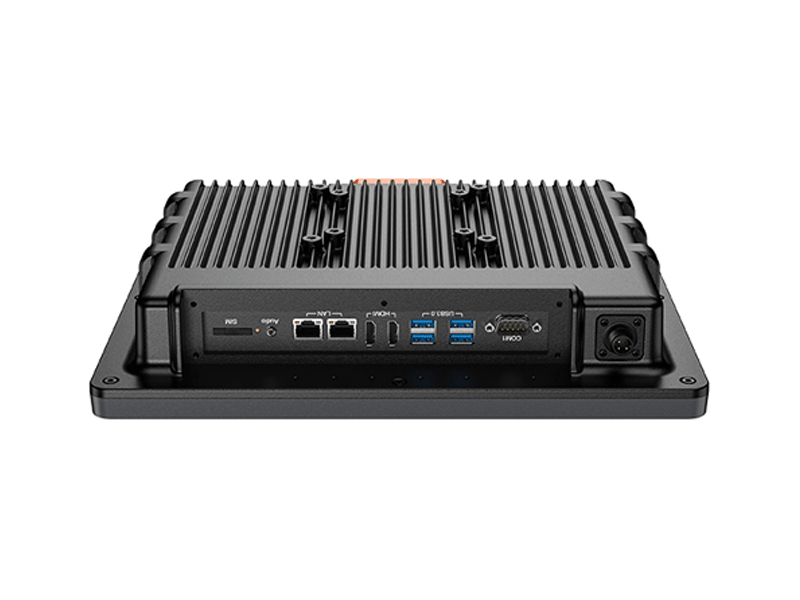

I/O Ports
| USB |
4x USB 3.0 (Type A) |
|---|---|
| Serial |
1x RS-232/422/485 (COM1 supports 5V/12V, DB9) |
| Ethernet |
2x GbE LAN (RJ45) |
| Display |
2x HDMI |
| SIM Card Slot |
1x SIM socket |
| Antenna |
2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
RF Communication
| Wi-Fi |
Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G (optional) |
|---|---|
| Cellular |
4G, LTE (optional) |
| Bluetooth |
Bluetooth 4.0/5.3 (optional) |
| GNSS |
GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
Audio
| Audio |
3.5mm Audio Jack (Mic-in/Line-out) |
|---|---|
| Speaker |
3.5mm Audio Jack (Mic-in/Line-out) |
Power
| DC Input |
8 to 36VDC |
|---|---|
| Power Consumption |
25W (Typ.) |
| Power Mode |
ATX (default), AT |
Operating System
| Windows |
Windows 11 IoT Enterprise LTSC |
|---|
Mechanical
| Dimension (W x D x H) |
320 x 260 x 63 mm (12.6 x 10.24 x 2.48 inches) |
|---|---|
| Weight (N.W.) |
3.8 kg (8.4 lbs) |

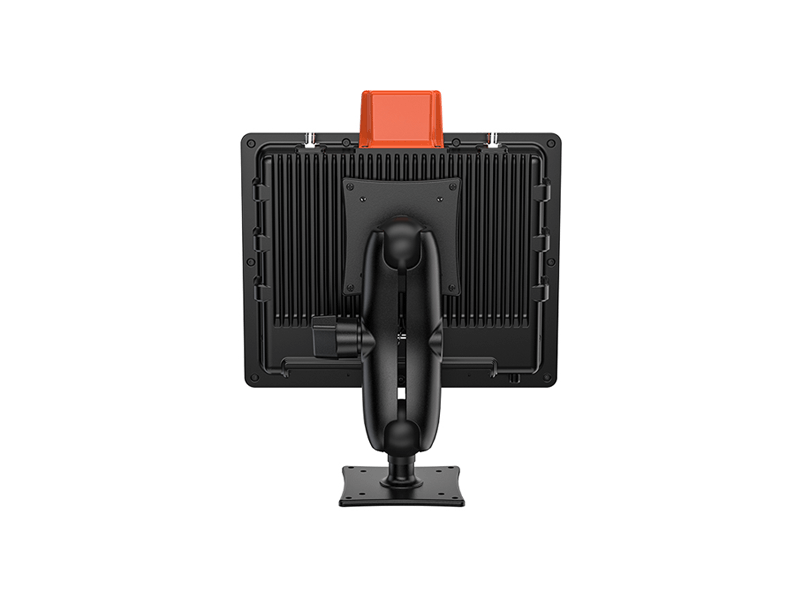

| Mounting Mode |
VESA 75 and 100 |
| Material |
Die-casting aluminum with heavy duty metal |
Environment
| Operating Temp. |
-20 to 60°C (-4 to 140°F) |
|---|---|
| Storage Temp. |
-40 to 70°C (-40 to 158°F) |
| Relative Humidity |
95% @ 70°C (158°F), non-condensing |
| Shock |
MIL-STD-810G Method 516.6 Procedure I |
| Vibration |
MIL-STD-810G Method 514.6 Procedure I |
| IP Rating |
IP65 compliant (I/O interface must be closed) |
Certification
| EMC |
CE, FCC |
|---|
