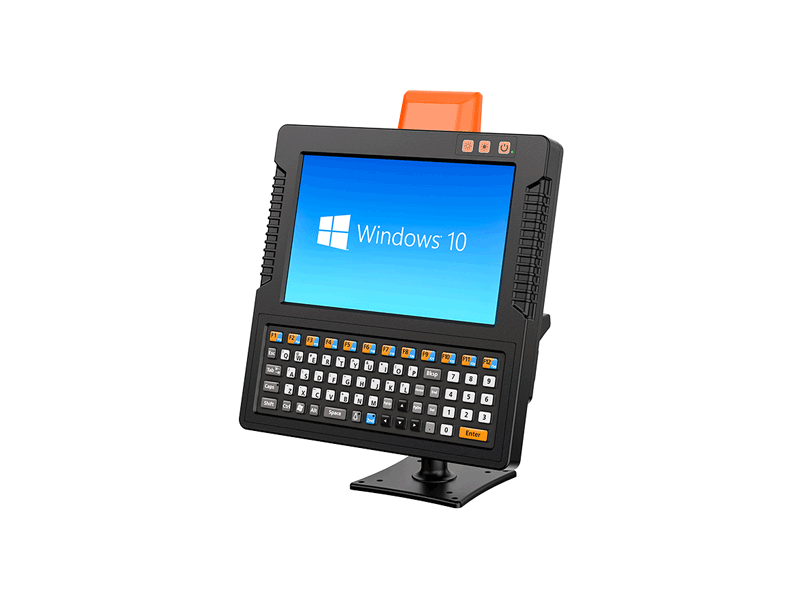

VT-708K
10.1″ Windows Vehicle Mount Computer with Intel® Celeron® Processor
Display
| Size |
10.1 inch (16:10) |
|---|---|
| Touch Type |
5-wire resistive touch |
| Display Type |
TFT LCD |
| Resolution |
1280 x 800 |
| Luminance |
1000 nits |
| Contrast Ratio |
900: 1 |
| View Angles |
85 (left), 85 (right), 85 (up), 85 (down) |
| Color |
16.7M |
System
| CPU |
Intel® Celeron® J1900 processor (quad core, 2.0 GHz) |
|---|---|
| Chipset |
Intel® Atom® and Celeron® Processor SoC |
| Memory |
4GB DDR3L-1333 SO-DIMM (up to 8GB) |
| Storage |
128GB mSATA SSD (up to 512GB) |
| Graphics |
Intel® HD Graphics |
| BIOS |
SPI BIOS |
Keypad & Keyboard
| Keypad |
Power on/off |
|---|---|
| Keyboard |
70-keys QWERTY Keyboard |

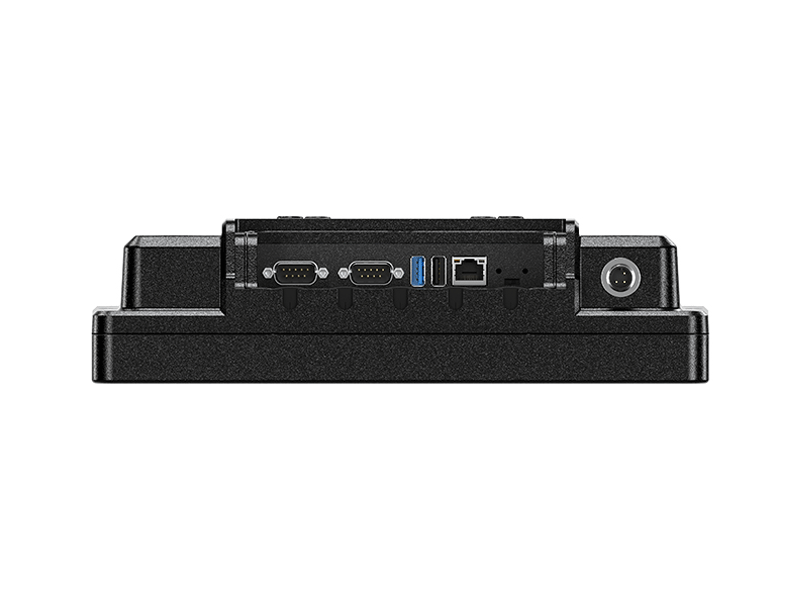

I/O Ports
| USB |
1x USB 2.0 (Type A), 1x USB 3.0 (Type A) |
|---|---|
| Serial |
1x RS-232/422/485 (COM1 supports 5V/12V, DB9) |
| Ethernet |
1x GbE LAN |
| SIM Card Slot |
1x Nano SIM socket |
| DIO |
4x DI + 2x DO (optional, with 3.3V, replace COM2 port) |
| CAN bus |
2x CAN2.0B (optional, supports J1939 protocol, compatible-layout with COM2 port) |
| Antenna |
2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
RF Communication
| Wi-Fi |
Wi-Fi 5: 802.11a/b/g/n/ac, 2.4G/5G (optional) |
|---|---|
| Cellular |
4G, LTE (optional) |
| Bluetooth |
Bluetooth 4.0/5.3 (optional) |
| GNSS |
GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
Audio
| Speaker |
8Ω/2W, mono speaker |
|---|
Power
| DC Input |
8 to 36VDC |
|---|---|
| Power Consumption |
18W (Typ.) |
| Ignition On/Off |
Power on delay, default 10 seconds |
| Battery |
7.2V 3350mAh (optional) |
| Power Mode |
ATX (default), AT |
Operating System
| Windows |
Windows 10 IoT Enterprise LTSC |
|---|
Mechanical
| Dimension (W x D x H) |
280 x 285 x 73 mm (11.02 x 11.22 x 2.87 inches) |
|---|---|
| Weight (N.W.) |
3.8 kg (8.38 lbs) |

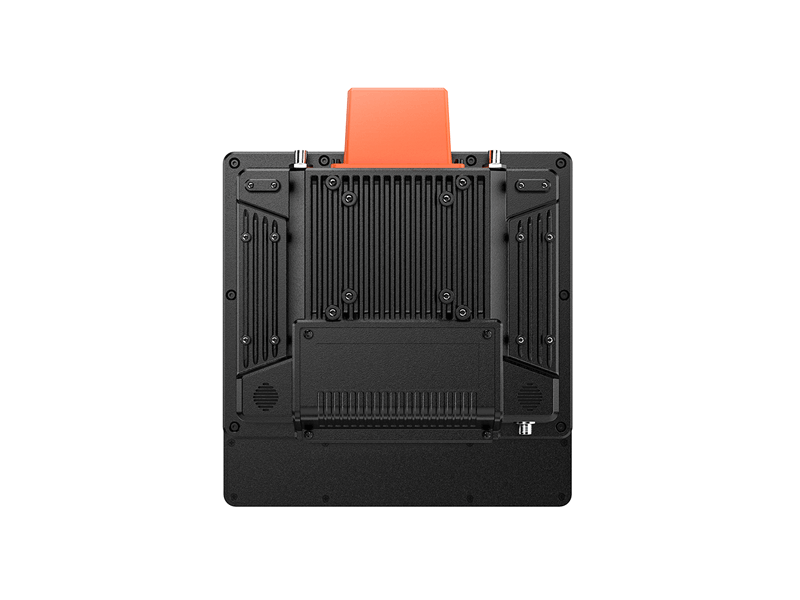

| Mounting Mode |
VESA 75 and 100 |
| Material |
Die-casting aluminum with heavy duty metal |
Environment
| Operating Temp. |
-20 to 60°C (-4 to 140°F) |
|---|---|
| Storage Temp. |
-40 to 70°C (-40 to 158°F) |
| Relative Humidity |
95% @ 70°C (158°F), non-condensing |
| Shock |
MIL-STD-810G Method 516.6 Procedure I |
| Vibration |
MIL-STD-810G Method 514.6 Procedure I |
| IP Rating |
IP65 compliant (I/O interface must be closed) |
Certification
| EMC |
CE, FCC |
|---|
