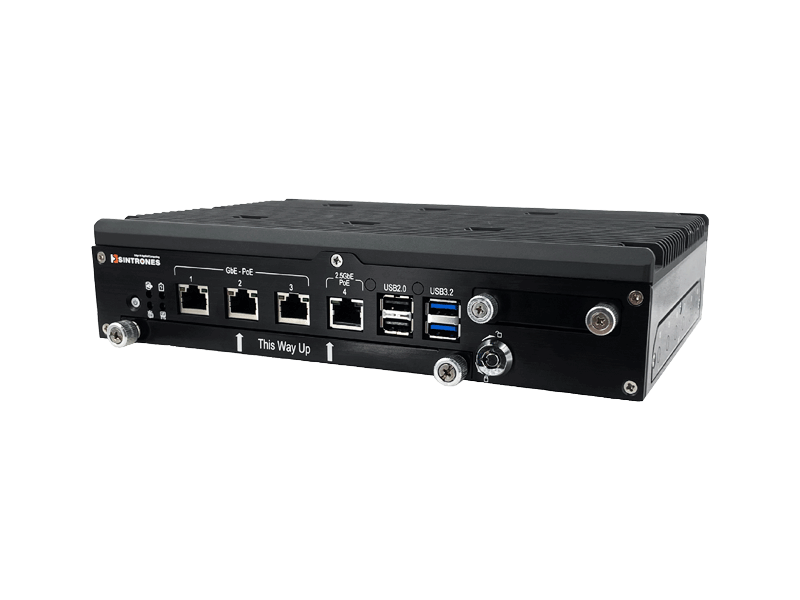

VBOX-3650(P)-(M12X)
Intel® Core™ Ultra Series 3 Processor In-Vehicle Edge AI Computer
The VBOX-3650(P)-M12X Series is an industrial-grade in-vehicle edge AI computer built around the Intel® Core™ Ultra Series 3 processor. Designed for harsh automotive environments, this rugged system delivers powerful computing performance, reliable connectivity, and wide-temperature operation for fleet management, telematics, autonomous vehicle systems, and smart transportation applications.
Featuring robust M12 connectivity, industrial certifications, and flexible expansion options, the VBOX-3650(P)-M12X supports a variety of peripherals and sensor interfaces while maintaining high stability and long-term durability in demanding mobile and on-the-road scenarios.
System
| Processor |
Intel® Core™ Ultra X9 Processors 388H up to 5.1 GHz (P-Core) |
|---|---|
| Grapgics |
Intel® Arc™ B390 GPU for Ultra X9 388H |
| Memory |
2 x DDR5-7200 SO-DIMM up to 128 GB (In Band ECC Support) |
| Watchdog |
Auto reset for unresponsive system |
| TPM |
1 x TPM 2.0 (Comply with FIPS 140-3) |
Interface
| Video |
1 x HDMI® with support for 8K@60Hz as specified in HDMI 2.1 |
|---|---|
| Audio |
1 x Line-out, 1 x Mic-in |
| Ethernet |
1 x 2.5GbE from Intel I226-LM via RJ-45 or M12 X-code |
| USB |
2 x USB 3.2, 2 x USB 2.0 |
| DIO |
6 x DI (0-60VDC), 4 x DO (12VDC/100mA) |
| COM |
4 × COM support RS-232/422/485 ports (3 x COM for M12 model) |
| Mgmt. Port |
1 x Standby Control via 3-pin terminal block |
Storage
| Type |
• 1 x M.2 2242/2260/2280 Key M for NVMe SSD |
|---|
Internal Expansion
| M.2 |
2 x M.2 3042/3052 Key B for WWAN w/ dual SIM support |
|---|---|
| Mini PCIe |
2 x Mini PCIe* (full-size w/ USB 2.0 only) |
Power
| Power Input |
DC 9-60V (nominal power input DC 12V/24V/48V) via 3-pin terminal block or M12 K-code |
|---|---|
| Power Output |
2 x DC 12V/1A via DB-15 |
| Power Protection |
OCP, OVP, Surge and Reversed Polarity Protection |
| Power Management |
Ignition detection, Smart Power Management |
| RTC Battery |
Removable front tray for RTC coin cell battery |
| Battey Backup Unit (BBU) |
Optional battery kit for up to 5 minutes of emergency backup time (Battery charging Temp. 0°C ~ 45°C and discharging Temp. -10°C ~ 60°C) |
Mechanical
| Construction |
Aluminum Alloy with Fanless Design |
|---|---|
| Antenna |
7 x SMA connector mounting hole |
| Mounting |
Wall-mount |
| Net Weight |
RJ-45 model: TBDkg (TBD lb) |
| Dimensions (L x W x H) |
250 x 160 x x 55 mm (9.85 x 6.30 x 2.17 in.) |
Environment
| Operating Temp. |
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow |
|---|---|
| Storage Temp. |
-40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity |
10% RH ~ 90% RH (non-condensing) |
| Vibration |
IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms) |
Certification
| Type |
CE, FCC Class A, UKCA, E-Mark, EN 62368-1* EN 50155* EN 45545-2 (R25) |
|---|
Software
| Operational System |
Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS or above |
|---|
Ordering Information
| Mode Number |
VBOX-3650(P)(-M12X)-zzz-zzzzz (P=w/ PoE, M12X=w/ M12 X code connectors |
|---|---|
| Description |
Intel® Core™ Ultra Series 3 Processor In-Vehicle Edge AI Computer |
| State of Origin |
Taiwan |
