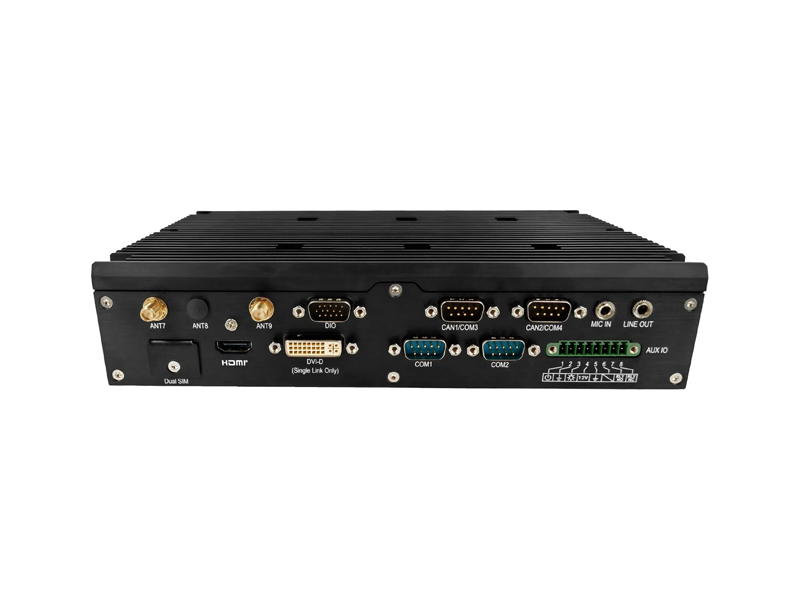

VBOX-3631-(M12X)
Rugged Intel® Core™ Series 3 Edge AI Computer for Intelligent Vehicles
VBOX-3631-(M12X) is a rugged fanless in-vehicle edge AI computer powered by Intel® Core™ Processors Series 3 with an integrated NPU for efficient AI acceleration at the edge. Designed for intelligent transportation and connected vehicle applications, it delivers reliable performance while maintaining low power consumption and long-term stability.
The system features one 2.5GbE and four GbE ports for high-speed networking, USB Type-C DisplayPort output, dual CAN FD, isolated digital I/O, and multiple wireless expansion options including 5G, Wi-Fi, and Bluetooth. A front-access RTC battery tray, optional Battery Backup Unit (BBU), and Smart Power Management simplify maintenance while ensuring uninterrupted operation in mission-critical environments.
Supporting a wide 9–60V DC input, fanless operation, and optional M12 X-coded connectors, VBOX-3631-(M12X) is built for demanding transportation environments such as public transit, fleet management, mobile surveillance, autonomous vehicles, railway systems, and roadside edge AI deployments.
System
| Processor |
Intel® Core™ 7 processor 350 up to 4.8 GHz (P-Core) |
|---|---|
| Memory |
1 x DDR5-6400 SO-DIMM up to 64 GB (In Band ECC Support) |
| Graphics |
Intel® Graphics |
| Security |
1 x TPM 2.0 (Comply with FIPS 140-3) |
| Watchdog |
Auto reset for unresponsive system |
Interface
| Video |
1 x HDMI® Output |
|---|---|
| Audio |
1 x Line-out, 1 x Mic-in |
| Ethernet |
1 x 2.5GbE from Intel I226-LM via RJ-45 or M12 X-code |
| USB |
2 x USB 3.2, 2 x USB 2.0 |
| DIO |
6 x DI (0-60VDC), 4 x DO (12VDC/100mA), 1 x Isolated DO (external 12V/1A support) |
| COM |
2 × COM support RS-232/422/485 ports |
| CAN |
2 x CAN FD |
| AUX IO |
1 x 12VDC/1A Out |
Storage
| Type |
2 x M.2 2280 Key M for NVMe SSD |
|---|
Internal Expansion
| M.2 |
2 x M.2 3042/3052* Key B for WWAN with dual Nano SIM support |
|---|---|
| Mini PCIe |
1 x Mini PCIe* (full-size w/ USB 2.0 only) |
Power
| Power Input |
DC 9-60V (nominal power input DC 12V/24V/48V) via 3-pin terminal block or M12 K-code |
|---|---|
| Power Output |
2 x DC 24V/1A via 8-pin terminal block |
| Power Protection |
OCP, OVP, surge protection, reversed polarity protection |
| Power Management |
Ignition detection, Smart Power Management |
| RTC Battery |
Removable front tray for RTC coin cell battery |
| Battey Backup Unit (BBU) |
Optional battery kit for up to 5 minutes of emergency backup time (Battery charging Temp. 0°C ~ 45°C and discharging Temp. -10°C ~ 60°C) |
Software
| Operating System |
Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS or above |
|---|
Mechanical
| Construction |
Aluminum Alloy with Fanless Design |
|---|---|
| Antenna |
9 x SMA connector panel mount hole |
| Mounting |
Wall mounting |
| Net Weight |
TBD |
| Dimensions |
250 x 160 x x 55 mm (9.85 x 6.30 x 2.17 in.) |
| Ingress Protection |
IP40 |
Environment
| Operating Temp. |
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow |
|---|---|
| Storage Temp. |
-40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
| Vibration |
IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms) |
Certification
| Certification |
CE, FCC Class A, UKCA, E-Mark, EN 62368-1* EN 50155* EN 45545-2 (R25), CISPR 25* |
|---|
Ordering Information
| Mode Number |
VBOX-3631(-M12X)-zz-zzz (M12X=w/ M12 X-coded connectors) |
|---|---|
| Description |
Intel® Core™ Series 3 Edge AI Computer |
| State of Origin |
Taiwan |
