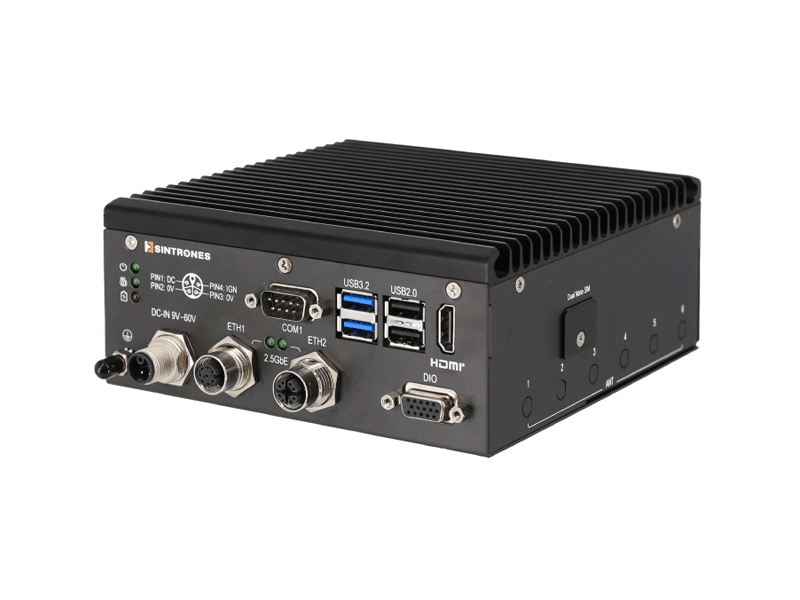

In-Vehicle Computer

Intel Atom® x7835RE Octa-core Processor up to 3.6 GHz
Intel Atom® x7433RE Quad-core Processor up to 3.4 GHz
Intel® Processor N150 Quad-core Processor up to 3.2GHz

1 x SO-DIMM DDR5 up to 16 GB

Intel® UHD Graphics

Auto reset for unresponsive system

1 TPM 2.0

TPM 2.0

1 x HDMI® with support for 4K@60Hz as specified in HDMI 2.0b

1 x Line-out, 1 x Mic-in (Optional)

1 x 2.5GbE from I226-IT via RJ-45 or M12 X-code for PoE model
4 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via RJ-45 or M12 X-code
* Share with 1GbE bandwidth; Power budget: 60W
**Non-PoE model: 2 x 2.5GbE

1 x CAN 2.0

2 x USB 3.2, 2 x USB 2.0

2 × RS-232/422/485 ports, expandable with 4 optional COM ports

8 x DI (9-60VDC), 4 x DO (12VDC/100mA)

1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support
1 x M.2 2230 Key E for Wi-Fi/BT

1 x M.2 2280 Key M for NVMe SSD
1 x M.2 2280 Key M for NVMe/SATA SSD

DC 9 – 60V Input

Ignition detection, Smart Power Management

OCP, OVP, surge protection, reversed polarity protection

Backup battery for system power backup
* Non-PoE model only

Aluminum Alloy with Fanless Design

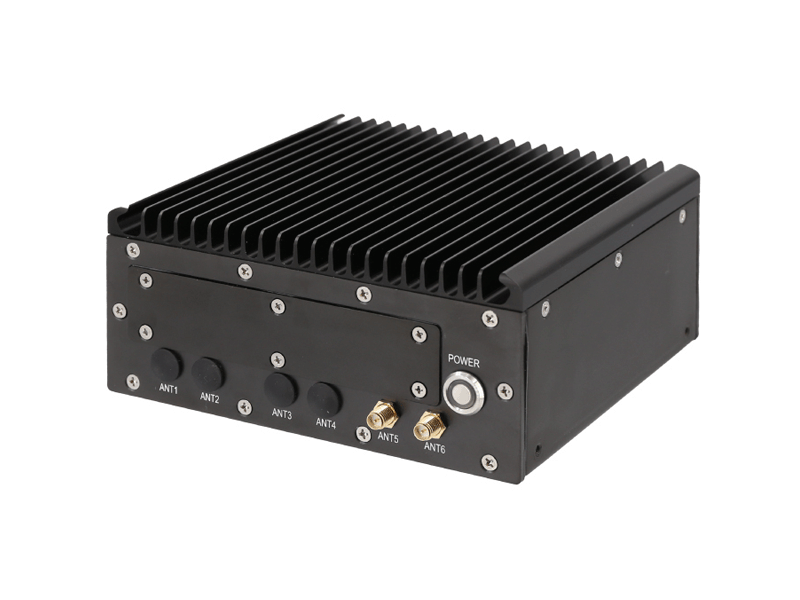

6 x SMA connector panel mount hole

DIN rail, Wall-mount

1.90kg (4.19 lb)

RJ-45 model: 150 x 150 x 65 mm (5.91 x 5.91 x 2.56 in.)
M12 PoE model: 150 x 150 x 87 mm (5.91 x 5.91 x 3.43 in.)

IP40

x7000RE Processor : -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
N-series Processor: -30°C ~70°C (-22°F~158°F) with 0.6m/s airflow
* Operating temp. varies by accessories installed.

-40°C ~ 80°C(-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

Windows 10/11 IoT 64-bit, Ubuntu 20.04/22.04 LTS 64-bit

VBOX-3132P
VBOX-3132P-yyy-zz (yyy=M12X=M12 interface, yyy = Empty=RJ-45 interface; zz=A8=Intel Atom® x7835RE, zz=A4=Intel Atom® x7433RE)
VBOX-3132-D25-M12X
VBOX-3132-D25-M12X-zz (zz=A8=Intel Atom® x7835RE, zz=N4=Intel® Processor N150)
VBOX-3132-D25
VBOX-3132-D25-zz (zz=N4=Intel® Processor N150)

VBOX-3132P
Intel Atom® x7000RE 4-Port PoE M12/RJ-45 DIN rail Rugged Edge Computer
VBOX-3132-D25-M12X
Intel Atom® x7000RE Dual 2.5GbE M12 DIN rail Rugged Edge Computer (BBU for Option)
VBOX-3132-D25
Intel® N-series Processor Dual 2.5GbE RJ-45 Fanless Edge Computer (BBU for Option)

Taiwan
