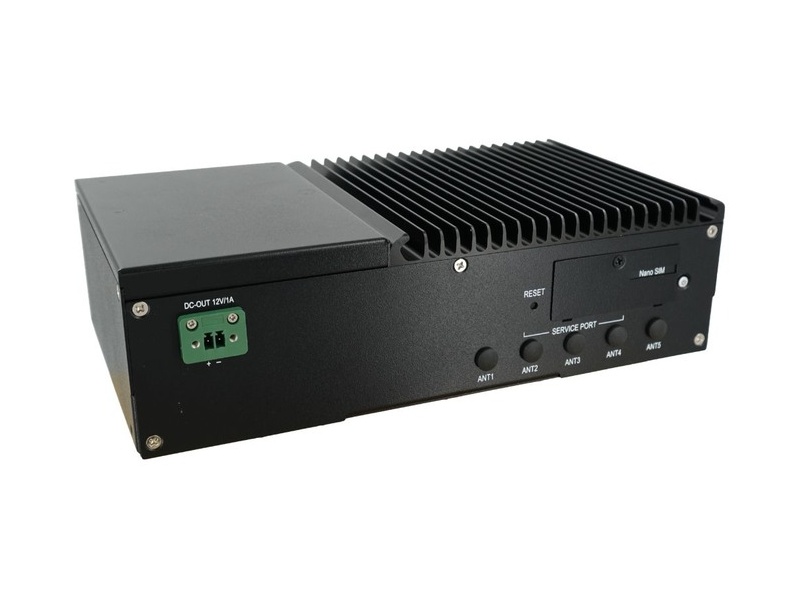

IBOX-601-TVI8
NVIDIA® Jetson Orin™ Edge AI Computer for TVI/AHD/CVI Analog Cameras
Application: Fleet management, Public transit
The IBOX-601-TVI8 is an NVIDIA® Jetson Orin™ Edge AI computer designed for multi-camera systems using TVI/AHD/CVI analog cameras. With support for up to eight analog camera inputs through BNC connectors, it brings AI processing and video analytics closer to existing analog camera infrastructure.
Powered by NVIDIA® Jetson Orin™ NX or Orin Nano, the system combines edge AI computing with dual LAN, CAN FD, serial communication, DIO, and 9–60VDC power input. Its fanless design makes it suitable for vehicle and industrial applications requiring multi-camera video processing at the edge.
Typical applications include fleet management, mobile video surveillance, transportation systems, and industrial monitoring.
System
| Module / Memory | NVIDIA® Jetson Orin™ NX 16GB: 1024 CUDA cores, 8-core ARM Cortex-A78AE CPU, 16 GB LPDDR5 |
|---|---|
| Security | Platform Security Controller (PSC), Security Engine (SE) |
| Watchdog | Auto reset for an unresponsive system |
Interface
| Ethernet | 1 x 2.5GbE (Intel® I226-IT) via RJ-45 |
|---|---|

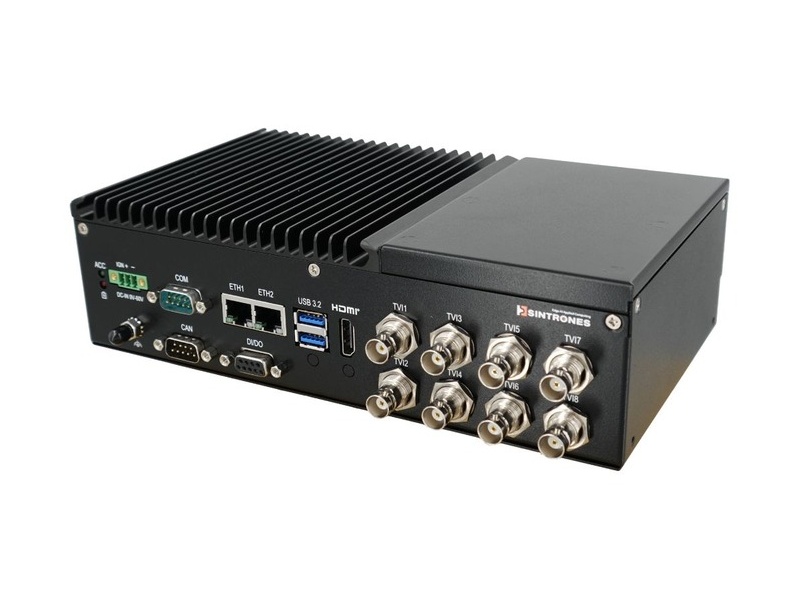

| Camera | Up to 8-channel TVI/AHD/CVI analog camera input via 8 BNC connectors |
| USB | 2 x USB 3.2 |
| Serial | 1 x RS-232/422/485 |
| CAN | 1 x CAN FD |
| DIO | 4 x DI, 4 x DO |
| Display / Audio | 1 x HDMI® Type-A output; HD audio output via HDMI |
| Camera Power | 1 x 2-pin terminal block for 12VDC/1A output |
| Management Port | 1 x USB Type-C for system recovery (device only) |
Internal Expansion
| WWAN | 1 x M.2 3042/3052 Key B with SIM support |
|---|---|
| Wi-Fi / Bluetooth | 1 x M.2 2230 Key E |
| GNSS | 1 x full-size Mini PCIe slot (USB 2.0, I2C) for a GNSS module |
Storage
| Type | 1 x M.2 2280 Key M for NVMe SSD |
|---|
Software
| Operating System / SDK | NVIDIA® JetPack 6.2 or later, including Jetson Linux and NVIDIA development tools |
|---|
Power
| Input | 9-60VDC (nominal 12V/24V/48V) via Phoenix Contact 3-pin terminal block |
|---|---|
| Protection | Overcurrent, overvoltage, surge, and reversed polarity protection |
| Management | Ignition detection and Smart Power Management; optional battery backup unit (BBU) supported |
| Optional BBU | Optional battery kit provides approximately 5-10 minutes of emergency backup, depending on total system power consumption. Battery must be charged before use. |
Mechanical
| Construction / Mounting | Aluminum alloy; wall mounting |
|---|---|
| Dimensions (L x W x H) | 244 x 135 x 69 mm (9.61 x 5.32 x 2.72 in.) |
| Net Weight | 1800 g |
| Antenna | 5 x SMA connector mounting holes |
Environmental
| Operating Temperature | Orin NX 16GB (40W): -25°C to 63°C (-13°F to 145°F) |
|---|---|
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Relative Humidity | 10% to 90% RH, non-condensing |
| Vibration (with SSD) | MIL-STD-810H, Method 514.8, Procedure I, Category 4 (operating) |
| Shock (with SSD) | MIL-STD-810H, Method 516.8, Procedure I; trucks and semi-trailers: 15G (11ms), operating |
| Certification / Compliance | CE, FCC Class A, E-mark, UKCA |
Ordering Information
| Model | IBOX-601-TVI8-ONX16: Orin NX 16GB |
|---|---|
| Country of Origin | Taiwan |
