EMV1200 FHD-N (Preliminary)

12 Channels 1080p Full HD Mobile DVR

Up to 1080p full-HD resolution for recording
Supports H.264/H.265 video compression
Supports UTC function
Supports 2.5" SSD x 1 (Max. 4TB)
Provides 1GbE x 2 (RJ45 x 1, M12 x 1)
3-axis G-sensor embedded
Supports multiple serial interfaces
Internal temperature control (built-in 2 heaters)
IR remote control function
M12 Aviation connectors adopted
Supports mobile applications (MobileFocus)
Multiple network monitoring: Web viewer, XFleet fleet management server system
Certificates: CE, FCC; MIL-STD-810G (shock & vibration); EN50155, SAE-J1455 (by project)

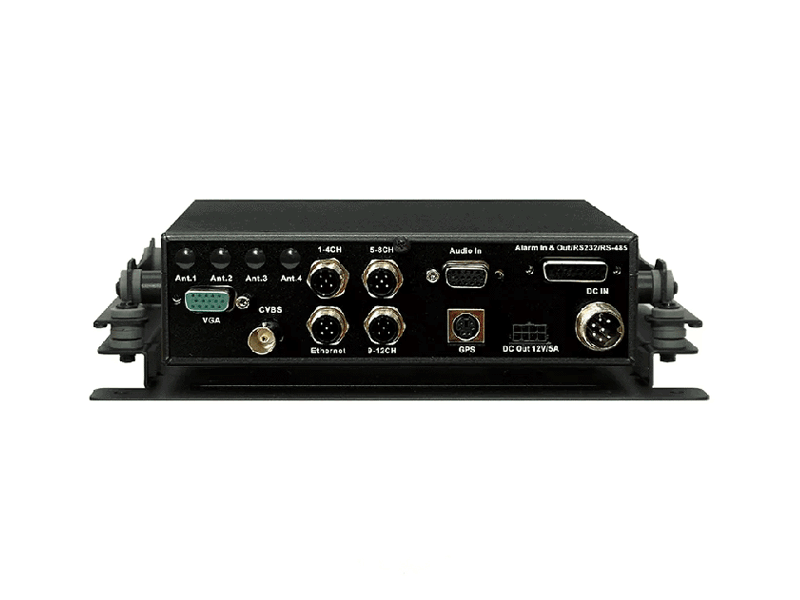

The latest Sintron digital video recorder generation is based on H.264 compression technology, resulting in enhanced recording capacity and improved network image transmission speed with high image quality. The EMV1200 FHD-N can support 12 channels analog SD/HD cameras, delivering up to 1080p live view resolution. Its comprehensive features along with the embedded 3-axis g-sensor function enable the almost universal application of this mobile DVR series. It supports various interfaces such as three USB ports / RS-485 / RS-232 / Panic Button / CAN bus / GPS, 3G, 4G and Wi-Fi Antenna. The design of RCA video/audio outputs at front panel makes your installation easy. You can install one 2.5" hard disk in the HD mobile DVR. You can also install one SD Card for alarm event backup recording. The User Interface has been specially designed to fit mobile small-sized monitor. EMV1200 FHD-N are equipped with anti-shock and anti-vibration housing. The aviation M12 connectors are also equipped. The power supply supports voltage regulator, and delay on/off. In addition, the HD mobile DVRs are SAE-J1455, EN50155, E-Mark, CE and FCC certified.


Number of Channels

12 CH

Video Compression

H.264 / H.265

Audio Inputs


Audio Outputs

1 (RCA)

Main Monitor

VGA x 1

Call Monitor

BNC x 1 / RCA x 1

Recording Resolution

1080p / 720p / 960H / D1 / 2CIF / CIF / QCIF

Recording Mode

Event, Normal + Event, Schedule

Recording Rate NTSC

15fps @ 1080p, 30fps @ all other resolutions

Recording Rate PAL

12.5fps @ 1080p, 25fps @ all other resolutions

Pre Alarm Recording


Playback Mode


Playback Search

Time / Date, Event Search / Snapshot Search

Alarm Inputs


Alarm Outputs


Video Loss Detection


Event Alarm



1GbE x 2 (RJ-45 x 1, M12 x 1)


Supported (Optional, M.2 Key-E 2230)

4G / 5G

Supported (Optional, M.2 Key-B 3052/3042)


Supported (Optional)


2.5" SSD x 1 (Max. 4TB)

SD Card

SD/SDHC Card (Max. 32 GB) – for alarm event backup recording only


RJ-45 x 1, RS-232 x 3, RS-485 x 1, USB x 3


3-Axis G-Sensor embedded

System Control

IR Remote Control, Mouse, Web UI

PTZ Control


Power Source

9-36 VDC

Power Consumption

20W / 60W (Heater On)

Operating Temperature

-40°C~55°C / -40°F~131°F

Dimensions (W x D x H)

229.6 x 218 x 63.4mm / 9.04" x 8.58" x 2.5" (With Anti-Vibration Bracket)


With Anti-Vibration Bracket: 2.6kg / 5.73lb


CE, FCC; MIL-STD-810G (shock & vibration); EN50155, SAE-J1455 (by project)

Operating System

Windows XP (32-bit) / Win7 (32 and 64-bit)


Intel Core I3-2100



LAN Speed

10 / 100 / 1000 Mbps

Web Browser

IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF browser
