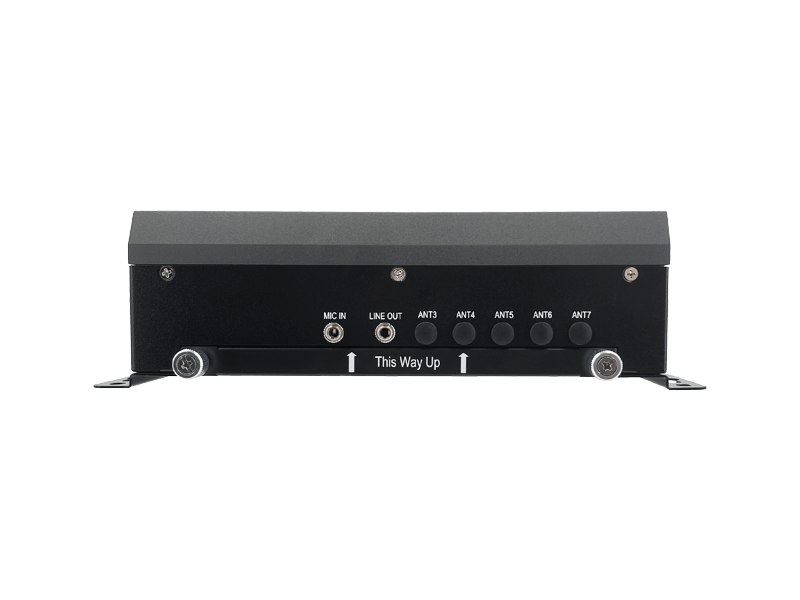

ABOX-5222(P) Series
Intel® Core™ Series 2 Processor for High-Performance Edge Computing
The ABOX-5222(P) Series from SINTRONES Technology Corp. is a high-performance industrial edge computing platform powered by Intel® Core™ Series 2 processors. Designed for advanced edge AI and data-intensive applications, it delivers powerful computing capability, flexible expansion options, and reliable industrial durability. Supporting up to 96GB DDR5 memory, multiple 2.5GbE LAN ports (optional PoE+), and high-speed USB 3.2 Gen2 interfaces, the system enables seamless integration with cameras, sensors, and peripheral devices.
With rich expansion options including M.2 and Mini PCIe slots for Wi-Fi, GNSS, and WWAN connectivity, plus wide-range DC power input, industrial-grade protection, and watchdog timer support, the ABOX-5222(P) ensures stable operation in demanding environments. It is an ideal platform for machine vision, intelligent automation, smart transportation, and AI-driven edge analytics applications.
System
| Processor |
Intel® Core™ 7 251TE |
|---|---|
| Grapgics |
Processor-integrated GPU - Intel® UHD Graphics 770 |
| Chipset |
H610E |
| Memory |
2 x DDR5-5600 SO-DIMM up to 96 GB |
| Watchdog |
Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS) |
| TPM |
2.0 |
Interface
| Video |
1 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b |
|---|---|
| Audio |
1 x Line-out, 1 x Mic-in |
| Ethernet |
6 x 2.5GbE (Intel I226-LM) via RJ-45 (optional PoE+) |
| USB |
8 x USB 3.2 Gen 2 |
| DIO |
8 x DI (DC 9-60V), 4 x DO (DC 5V/100mA) |
| COM |
2 × RS-232/422/485 (optional 6 x RS-232/422/485) |
Storage
| Type |
1 x M.2 2280 Key B for SATA SSD |
|---|
Expansion
| M.2 |
1 x M.2 3042/3052 Key B for WWAN w/ dual SIM support |
|---|---|
| Mini PCIe |
1 x Mini PCIe (full-size w/ USB 2.0 only) |
Power
| Power Input |
DC 9-60V (nominal power input DC 12V/24V/48V) via 5-pin terminal block |
|---|---|
| Power Protection |
OCP, OVP, Surge and Reversed Polarity Protection |
| Power Management |
Ignition detection, Smart Power Management |
| RTC Battery |
High-capacity coin cell battery for RTC |
Mechanical
| Construction |
Aluminum Alloy |
|---|---|
| Antenna |
7 x SMA connector mounting hole |
| Mounting |
Wall-mount |
| Net Weight |
3.50 kg (7.72 lb) |
| Dimensions (L x W x H) |
242 x 240 x 70 mm (9.53 x 9.45 x 2.76 in.) w/ mounting brackets |
Environment
| Operating Temp. |
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow |
|---|---|
| Storage Temp. |
-40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity |
10% RH ~ 90% RH (non-condensing) |
| Vibration |
IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms) |
Certification
| Type |
CE, FCC Class A, UKCA, E-Mark, IEC 62368-1 |
|---|
Software
| Operational System |
Windows 11 IoT Enterprise LTSC |
|---|
Ordering Information
| Mode Number |
ABOX-5222(P)-zzzzz (P= w/ PoE, zzzzz=251TE=Intel® Core™ 7 251TE, zzzzz=211TE=Intel® Core™ 5 211TE, zzzzz=201TE=Intel® Core™ 3 201TE |
|---|---|
| Description |
Intel® Core™ Series 2 Processor for High-Performance Edge Computing |
| State of Origin |
Taiwan |
