VPC-101RB2S Seroes
Rugged 10.1″ Fanless Edge AI Panel PC with NVIDIA® Jetson for Harsh Environments
System
| Module |
NVIDIA® Jetson Orin™ NX 16GB |
|---|---|
| Security |
Platform Security Controller (PSC), Security Engine (SE) |
LCD
| Screen Size |
10.1 inches |
|---|---|
| Resolution |
1280 × 800 |
| View Angle (H/V) |
178/178 |
| Brightness (nits) |
1000 nits (typical) |
| Contrast Ratio |
800 : 1 (typical) |
| Lifetime (hrs) |
50000 |
Touch
| Type |
PCT w/ AG and AF treatment |
|---|---|
| Bonding |
Optional Bonding |
Interface
| Audio |
1 x Line-out, 1 x Mic-in (optional) |
|---|---|
| Ethernet |
1 x 2.5 GbE (Optional 4 x PoE+ for PoE model) |
| Camera |
4 x GMSL-2 via FAKRA (for GMSL Model) |
| CAN |
1 x CAN FD via M8 |
| USB |
2 x USB 2.0 via M8 |
| DIO |
3 x DI (DC 60 V) + 4 x DO (12VDC/100mA) |
| COM |
1 x RS-232/422/485 via M8 |
| Mgmt. Port |
1 x USB Type-C (device only) |
Power
| Power Input |
DC 9-60V (nominial power input DC 12V/24V/48V) |
|---|---|
| Power Protection |
OCP, OVP, surge protection, reversed polarity protection |
| Power Management |
Ignition detection |
| RTC Battery |

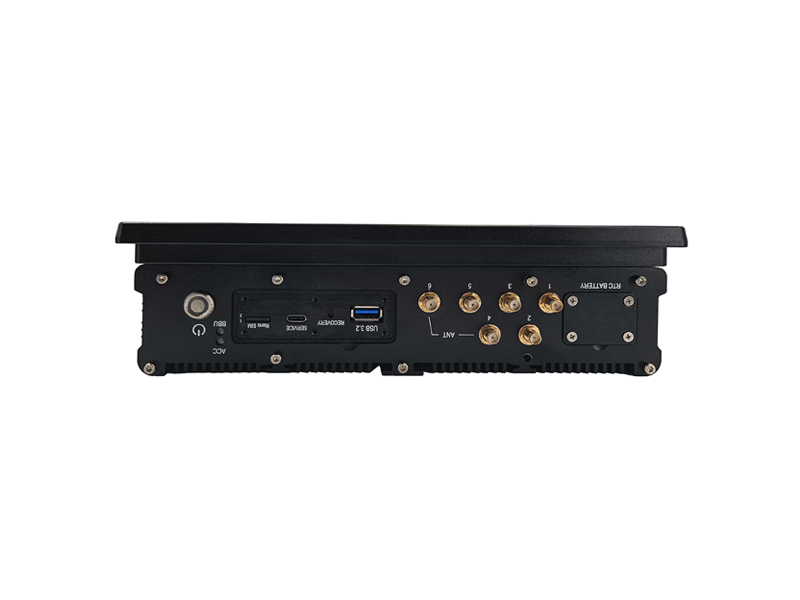

Removable top tray for RTC coin cell battery |
Internal Expansion
| M.2 |
1 x M.2 3042/3052 Key B for WWAN w/ Nano SIM support |
|---|
Storage
| Type |
1 x M.2 2242 Key M for NVMe SSD (Pre-installed system BSP) |
|---|
Software
| Operating System |
NVIDIA® JetPack 6.2 or above |
|---|
Mechanical
| Dimension |
260 x 179 x 75 (10.24 x 7.05 x 2.96 in.) |
|---|---|
| Weight |
4.15 kg (9.15 lb) |
| Mounting |
VESA 100 x 100 |
| Antenna |
6 x SMA connector mounting hole |
| IP Rating |
IP66 |
Environment
| Relative Humidity |
10% RH ~ 95% RH (non-condensing) |
|---|---|
| Operating Temp. |
-25°C ~ 60°C (-13°F ~ 140°F) with 0.6 m/s airflow |
| Storage Temp. |
-40°C ~ 85°C (-40°F ~ 185°F) |
| Vibration |
IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms) |
Certification
| Certification |
CE, FCC Class A, UKCA, E-Mark |
|---|
Ordering Information
| Mode Number |

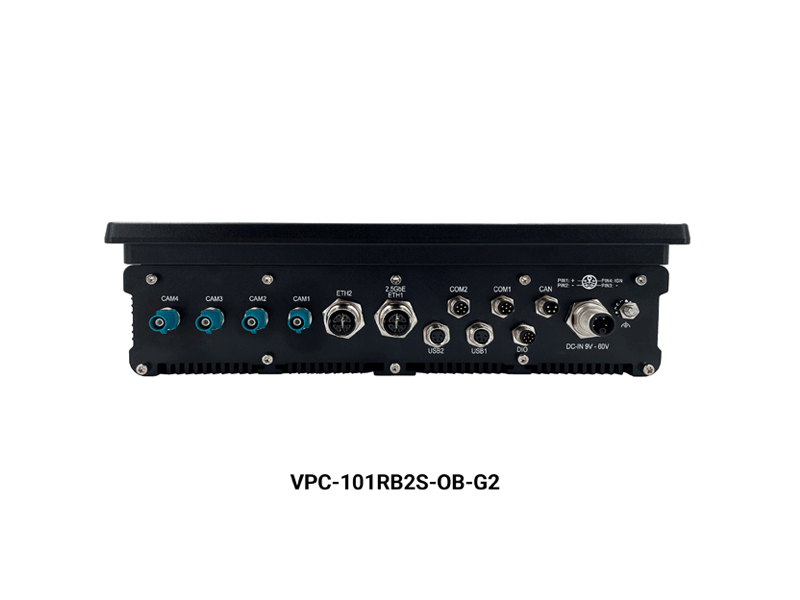

VPC-101RB2S-OB-(P/G2)-(ONX16/ONX8/ON8)(P=with PoE+, G2=with GMSL, None=w/o function board) |
|---|---|
| State of Origin |
Taiwan |
