Video Cature Card VDB-710N1 M2 HDMI2.0 with Loop, SINTRON Technology Corp.

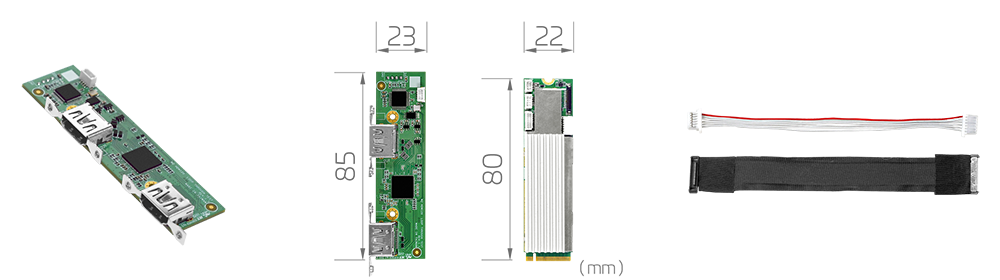

VDB-710N1 M2 HDMI2.0 with Loop

1CH 4K60 HDMI2.0 with Loop-Through

Max. Input Resolution	4096×2160p@60/50fps
Video Input	1xHDMI2.0
Dimension	22×80 (mm) M.2 Type M + 85×23 (mm)
Interface	M.2 (PCIe×4)
Feature	HDR10/HLG, HDMI 1.4B 3D, Multi Instances, Multi Devices
Video Input Detail	Single-Link HDMI 2.0
Video Output	1xHDMI2.0
Color Format	Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010
Video Processing	Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances
Video Resolution	4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps * More resolution supported by SDK
Audio Input	1xStereo Embedded Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Software Applications	vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting * DirectShow/V4L2 Compatable Software Supported
SDK	Windows and Linux SDK
OS Support	Windows 7/Windows 8/Windows 8.1/Windows 10/Windows 11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
