Video Capture Cards

1920×1080p@60/50fps

4xSDI

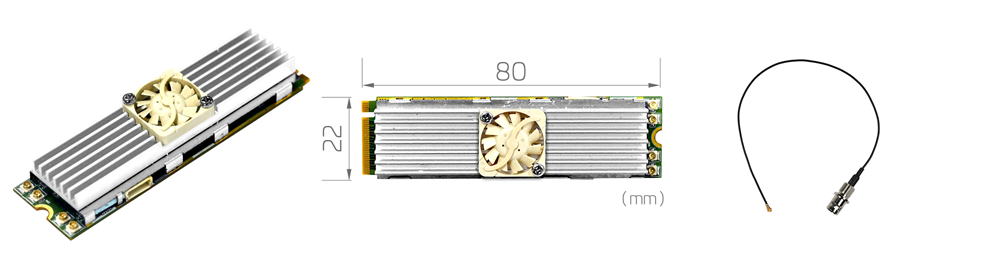

22×80 (mm) M.2 Type M

M.2 (PCIe×4)

Multi Instances, Multi Devices

SDI

N/A

Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

SDI :
1920×1080p@60/50fps
HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI :
720×480i@60fps
720×576i@50fps

4xStereo Embedded Audio

Stereo / 16-bit / 32000 ~ 48000Hz

vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting
* DirectShow/V4L2 Compatable Software Supported

Windows and Linux SDK

Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher (32-bit and 64-bit)
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
