IBOX-650P-IP66-T1
NVIDIA® Jetson AGX Orin™ 64GB IP66 Edge AI Computer with Automotive Ethernet
Application: Autonomous Driving, AGV & AMR
The IBOX-650P-IP66-T1 is a fanless IP66 edge AI computer for vehicle sensor integration in harsh environments. Its Jetson AGX Orin 64GB platform brings camera and sensor processing to the edge, while Automotive Ethernet, GMSL-2, PoE+ and CAN FD connect vehicle equipment. The combination of rugged connectivity, local NVMe storage and smart power management supports perception workloads in autonomous vehicles and mobile robotic systems.
Designed for autonomous driving and mobile robotics, the IBOX-650P-IP66-T1 enables multiple vehicle cameras, network devices, and control interfaces to connect to a single rugged edge computing platform. Its IP66 fanless enclosure and wide-range DC power input support deployment in demanding mobile environments, while local AI processing helps bring perception and sensor data closer to the point of operation.
System
| Module | Jetson AGX Orin 64GB: 2048 CUDA cores, 12-core Arm Cortex-A78AE, 64GB LPDDR5 |
|---|---|
| Network | Marvell SPE and 10GbE; dual Intel 2.5GbE |
| Security | PSC / SE |
| Watchdog | Automatic reset for an unresponsive system |
Interface
| Ethernet | 100/1000BASE-T1 (IEC 63171-5); 10GbE and dual 2.5GbE (M12 X-coded). Two IEEE 802.3at Class 4 PoE+ ports (30W). |
|---|---|

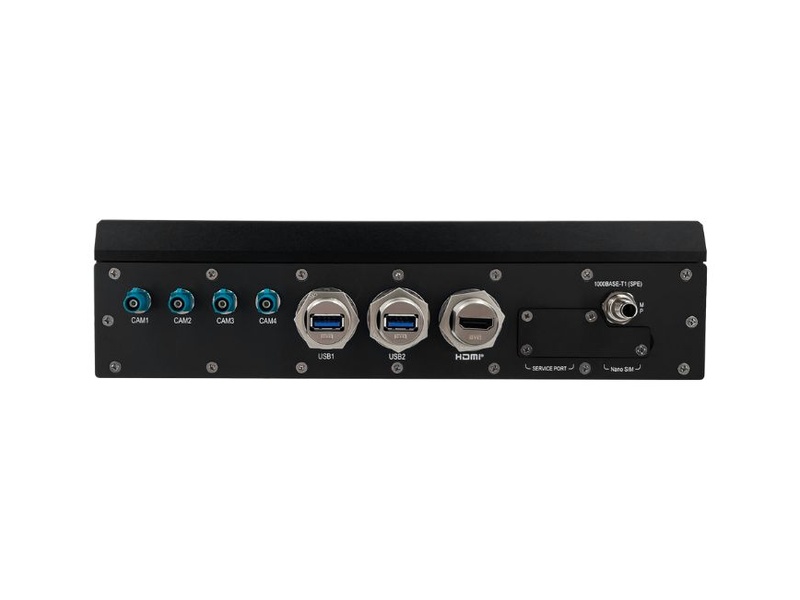

| Camera | 4 × GMSL-2 / FAKRA |
| CAN | 2 × CAN FD / M8 |
| USB | 2 × USB 3.2 Type-A / IP67 |
| Video / Audio | HDMI; HDMI HD audio |
| Serial | 1 × RS-232/422/485 / M12 |
| Digital I/O | 4 DI / 4 DO (12VDC/100A) via M12 |
| Analog / PWM | 5–60V analog input; 12VDC PWM output |
| Recovery | USB Type-C, device only |
| Antennas | 7 antenna holes |
Internal Expansion
| M.2 | 3042/3052 Key B for WWAN with Nano SIM; 2230 Key E for Wi-Fi/BT |
|---|---|
| mPCIe | Full-size, USB 2.0 |
Storage
| Type | 64GB eMMC with BSP; M.2 2280 Key M NVMe SSD slot |
|---|
Software
| Operating System / SDK | NVIDIA JetPack 6.2 or later |
|---|
Power
| Input | 9–60VDC / Phoenix Contact M12 K-coded |
|---|---|
| Protection | Overcurrent, overvoltage, surge and reverse polarity |
| Management | Smart power management |
| RTC | Coin cell battery |
| Backup (Option) | System backup battery; BAT-2300v2: -10°C to 60°C |
Mechanical
| Construction | Aluminum alloy; fanless |
|---|---|
| Mounting | Wall mount |
| Ingress Protection | IP66 |
| Weight | 5.30kg |
| Dimensions | 300 × 190 × 77.5mm (L × W × H) |
Environment
| Operating Temp. | -25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ airflow 0.6m/s (ONX8 model) |
|---|---|
| Storage Temp. | -40°C to 80°C |
| Humidity | 10–90% RH, non-condensing |
| Vibration (SSD) | IEC60068-2-64: 2.5G, 5–500Hz, 1 hour/axis; MIL-STD-810H Method 514.8, Procedure I, Category 4 |
| Shock (SSD) | MIL-STD-810H Method 516.8, Procedure I; trucks / semi-trailers: 15G, 11ms |
| Certification / Compliance | CE, FCC Class A, UKCA, E-mark, EN50155, EN45545-2 (R25) |
Ordering Information
| Model Number | IBOX-650P-IP66-T1-JAO64: AGX Orin 64GB / T1 / VDB-101 / 4 GMSL-2 / 2 PoE / 10GbE |
|---|---|
| Origin | Taiwan |
| Camera Integration | BSP version depends on the supported GMSL camera. Confirm camera and BSP compatibility before ordering. |
