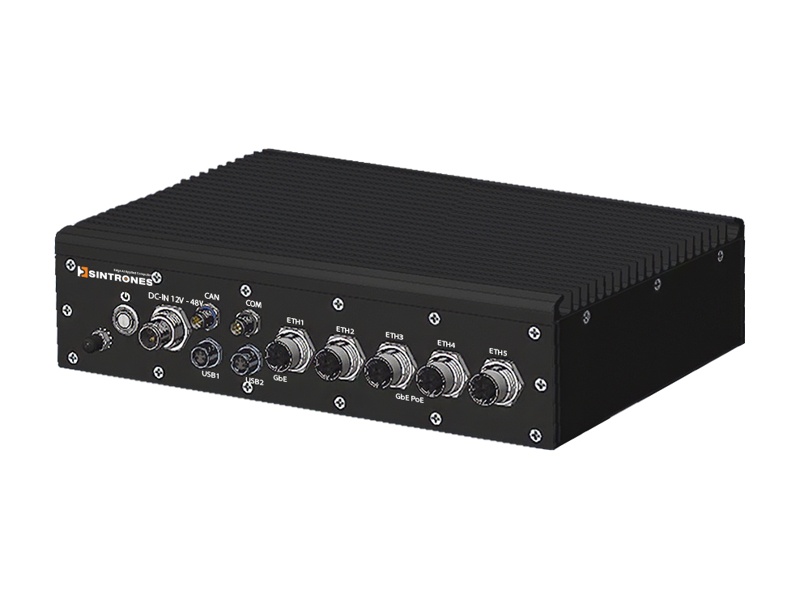

IBOX-603P-IP66-DP
NVIDIA® Jetson Orin™ Rugged IP66 PoE Edge AI Computer
Application: Outdoor Video Surveillance
IBOX-603P-IP66-DP is an upcoming NVIDIA® Jetson Orin™ Edge AI computer designed for harsh-environment Ethernet camera integration. The preliminary design combines IP66 protection with five M12 X-code Gigabit Ethernet ports, including four PoE ports rated at 15W each with a 60W total budget.
Native DisplayPort, CAN FD and serial connectivity support local display and peripheral integration. The nominal 12-48VDC input includes ignition detection and Smart Power Management. Preliminary operation is specified at -25°C to 70°C with 0.6 m/s airflow and varies with installed accessories.
Product status: Coming Soon. The available datasheet is Preliminary (2026-09-29). The supported modules are Jetson Orin NX 16GB and Orin Nano 8GB. Final ordering codes and availability require manufacturer confirmation.
System
| Module | NVIDIA® Jetson Orin™ NX 16GB |
|---|---|
| Security | Platform Security Controller (PSC), Security Engine (SE) |
| Watchdog | Auto reset for unresponsive system |
Interface
| Video | 1 x DP |
|---|---|
| Audio | 1 x HD audio output via DP |
| Ethernet | 1 x GbE (NVIDIA SoM) via M12 X-code |
| CAN | 1 x CAN FD via M8 |
| USB | 2 x USB 2.0 via M8 |
| DIO | Option |
| COM | 1 x RS-232/422/485 via M8 |
| Mgmt. Port | 1x USB Type-C for system recovery only (device only) |
Internal Expansion
Storage
| Storage Type | 1 x M.2 2242 Key M for NVMe |
|---|
Certification / Compliance
Power
| Power Input | DC 12-48V (nominal power input 12V/24V/48V) via M12 K-code |
|---|---|
| Power Protection | OCP, OVP, surge protection, reversed polarity protection |
| Power Management | Ignition detection, Smart Power Management |
| RTC Battery | Removable tray for coin cell battery |
Software
| Operating System | NVIDIA® JetPack 6.2 or above (Jetson Linux and NVIDIA® development tools included) |
|---|
Environmental
| Operating Temp. | -25°C ~ 70°C (-13°F ~ 158°F) with 0.6 m/s airflow |
|---|---|
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 10% RH ~ 90% RH (non-condensing) |
| Vibration | IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis |
| Shock | MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms) |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Antenna | 6 x SMA connector mounting hole |
| Mounting | Wall mounting |
| Net Weight | 2.1 kg (4.63 lb) |
| Dimensions (L x W x H) | 240 x 150 x 67.5 mm (9.45 x 5.91 x 2.66 in.) |
| Ingress Protection | IP66 |
Ordering Information
| Model Number | IBOX-603P-IP66-DP-zzzzz (zzzzz=ONX16=Orin NX 16GB, zzzzz=ON8=Orin Nano 8GB) |
|---|---|
| Description | NVIDIA® Jetson™ Orin NX/Nano w/ 4 x PoE / 1 x DP IP66 Rugged Edge AI Computer |
| State of Origin | Made in Taiwan |
