NVIDIA RTX Edge AI Computers

Intel® Core™ 9 Processor 273PTE
Intel® Core™ 7 Processor 251TE
Intel® Core™ 5 Processor 221TE

R680E

2 x DDR5-5600 SO-DIMM, up to 96 GB (ECC support with ECC DRAM)

Automatic reset for an unresponsive system; BIOS settings: 1–255 seconds/minutes

TPM 2.0

Integrated Intel® UHD Graphics 700 Series
Optional NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada or Intel® Arc™ A370E

2 x HDMI®, up to 3840 x 2160 at 60 Hz (HDMI 2.0b)

9728 CUDA / 304 Tensor cores; 16 GB GDDR6
682 AI TOPS (FP8); system operating temperature: 0°C to 60°C

5120 CUDA / 160 Tensor cores; 12 GB GDDR6
369 AI TOPS (FP8); system operating temperature: 0°C to 60°C

3072 CUDA / 96 Tensor cores; 8 GB GDDR6
232 AI TOPS (FP8); system operating temperature: 0°C to 70°C

8 Xe-cores / 128 execution units; 4 GB GDDR6
56 AI TOPS (INT8); system operating temperature: 0°C to 70°C

2 x 10GbE (Marvell AQC113), M12 X-code
4 x 2.5GbE (Intel I226IT), M12 X-code, with optional PoE+
ETH3 supports Intel® AMT
PoE: 25.5 W per port; total power budget: 120 W, as specified by the manufacturer

2 x USB 3.2 Gen 2

8 x DI (DC 5–60 V), 8 x DO (DC 5 V / 100 mA), M12 A-code

2 x RS-232/422/485, M12 A-code

1 x M.2 2280 Key M for NVMe/SATA SSD
2 x M.2 2280 Key M for NVMe SSD
2 x 2.5-inch SATA SSD

1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support
1 x M.2 2230 Key E for Wi-Fi/BT, GNSS or CAN Bus module
A thermal solution is required for an M.2 5G module.

2 x full-size Mini PCIe

DC 18–60 V (nominal DC 24 V / 48 V), M12 K-code

OCP, OVP, surge protection and reversed polarity protection

Ignition detection and Smart Power Management

Removable front tray for a coin cell battery

Optional battery kit: up to 10 minutes of emergency backup, depending on total system power consumption; charge before use.
Charging: 0°C to 45°C; discharging: −10°C to 60°C.
With the battery kit installed, system operating temperature is limited to −10°C to 60°C.
Patent No. M447854 (built-in battery)

290 x 253.5 x 101.5 mm (11.42 x 9.98 x 4 in.)

6 kg (13.23 lbs)

Aluminum alloy

Wall mounting

7 x SMA connector mounting holes

IP66

10% to 90% RH, non-condensing

−40°C to 70°C (−40°F to 158°F) with 0.6 m/s airflow.
Operating temperature varies with installed accessories. See the GPU-specific system limits above; the optional battery kit limits operation to −10°C to 60°C.

IEC 60068-2-64, random, 2.5G at 5–500 Hz, 1 hour/axis
MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers: 15G (11 ms)

CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25), EN 62638-1

Windows 11 IoT Enterprise LTSC

Ubuntu 26.04 LTS

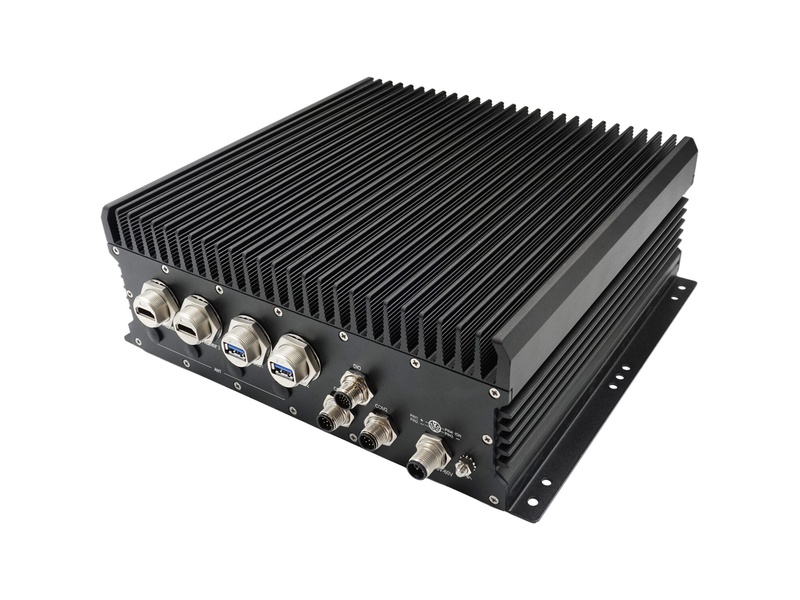

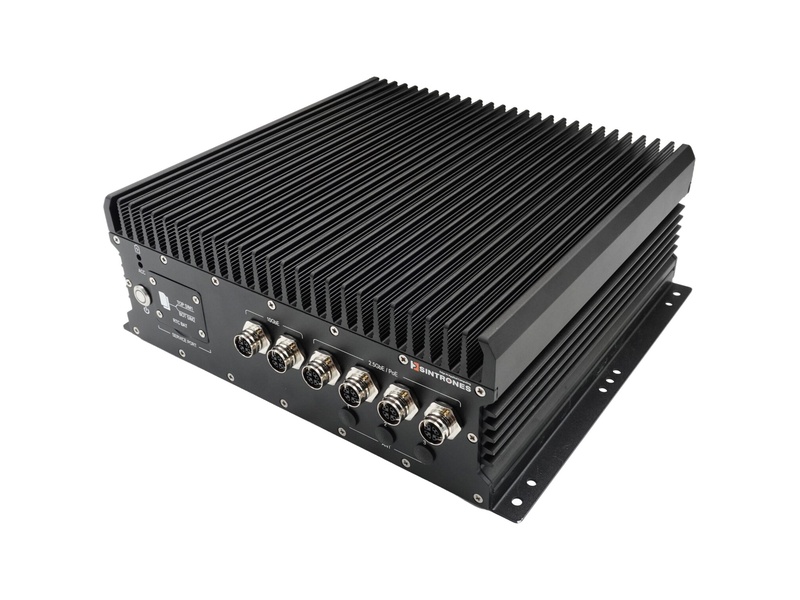

ABOX-5221(P)(G)-IP66-zzzzz
P: with PoE; G: with discrete GPU
zzzzz: 273PTE (Core™ 9), 251TE (Core™ 7) or 221TE (Core™ 5)

Intel® Core™ Series 2 processors with optional discrete GPU, high-bandwidth 10GbE and IP66 protection

Made in Taiwan
