Video Capture Cards

1920×1080p@60/50fps

1×SDI, 1×HDMI

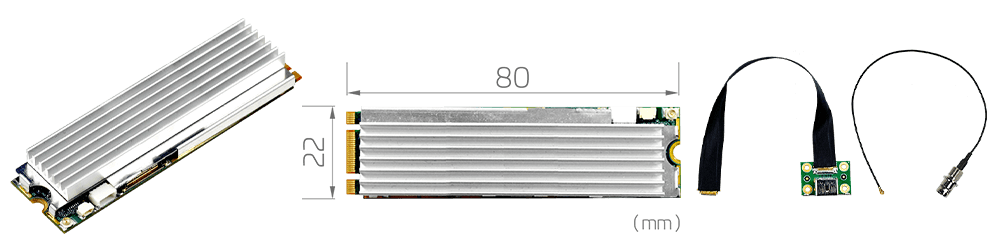

22×80 (mm) M.2 Type B/M

M.2 (PCIe×2)

Multi Instances, Multi Devices

HDMI, 3G-SDI

Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

3G-SDI :
1920×1080p@60/50fps

HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI :
720×480i@60fps
720×576i@50fps

HDMI :
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
* More resolution supported by SDK

2xStereo Embedded Audio (HDMI+SDI)

Stereo / 16-bit / 32000 ~ 48000Hz

vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting
* DirectShow/V4L2 Compatable Software Supported

Windows and Linux SDK

Windows 7/Windows 8/Windows 8.1/Windows 10/Windows 11
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
