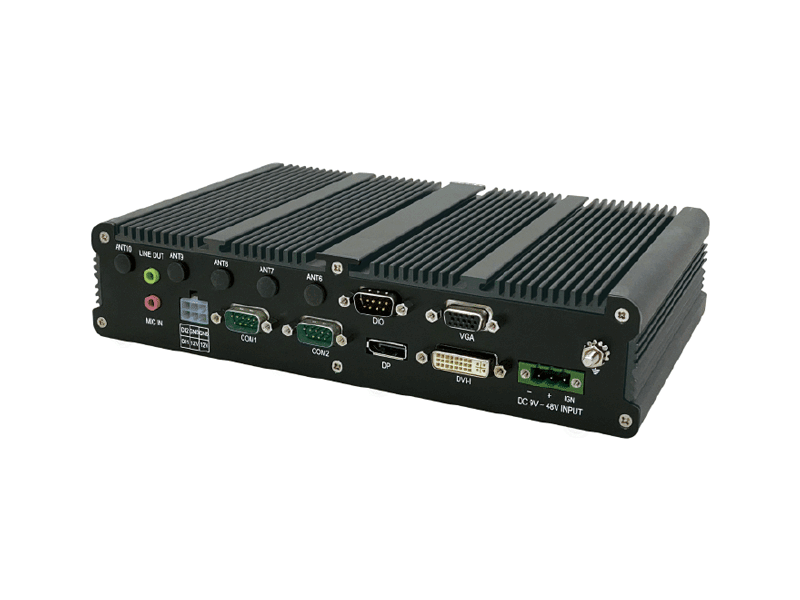

VBOX-3611-4L-D5G
Intel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer with Dual 5G Modem Capability
System
Processor |
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz |
---|---|
Chipset |
Intel 6th Generation Core SoC Processor |
Memory |
2 x DDR4 2133 MHz SO-DIMM up to 32GB |
Watchdog |
1 ~ 255 level reset |
TPM |
2.0 |
Graphics
Graphics Engine |
Intel UHD Graphics 520 (for i7, i5, and i3) |
---|---|
DVI |
1 x DVI-I Single link |
VGA |
1 |
DisplayPort |
1 X DP 1.2 |
Resolution |
Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz |
Audio
Audio Codec |
Realtek ALC662 HD Codec Onboard |
---|---|
Line-out |
1 |
Mic-in |
1 |
Ethernet
Chipset |
3 x Intel i210-AT GbE Controllers |
---|---|
Port |
4 x RJ-45 for GbE (LAN 1 with iAMT and PXE support) |
I/O
Serial Port |
2 x RS 232/422/485 (with RS-422/485 Auto Direction Control) |
---|---|
USB |
4 x USB 3.2 Gen1 Type A |
DIO |
4 x DI (5~48VDC) |
SIM Socket |
2 x SIM Card Sockets (for M.2 WWAN modem only) |
Storage
Type |
2 x 2.5” Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 |
---|---|
M.2 |
1 x M.2 M key 2280 slot supports M.2 SATA SSD |
Expansion
Mini PCI Express |
2 x Full Mini-PCIe (full function) |
---|---|
M.2 |
1 x M.2 2230 A-E Key, 2 x M.2 3042/52 B Key (USB 3.0 only) |
Power
Power Input |
9V – 48V DC Power Input |
---|---|
Power Protection |
Automatics Recovery Short Circuit Protection |
Smart Ignition |
Vehicle Power Ignition for Variety Vehicle |
Power-off Delay Control |
Power off Delay Time Setting by BIOS and Software |
Backup Battery Solution |
Patented Battery Kit |
Mechanical
Dimension |
250 x 150 x 55 mm |
---|---|
Weight |
2160g (barebone) |
Construction |
Aluminum Alloy |
Environment
Relative Humidity |
10% RH – 90% RH (non-condensing) |
---|---|
Operating Temp. |
-40ºC ~ 70ºC, ambient w/ 0.6m/s airflow |
Storage Temp. |
-40°C ~ 85°C |
Certification
Certification |
CE, FCC Class A, E13, EN50155, EN45545-2 (R25) |
---|---|
Patent |
M447854, M448011 |
Ordering Information
Mode Number |
VBOX-3611-4L-D5G, option for i7/i5/i3/C1 |
---|---|
Description |
Intel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer with Dual 5G Modem Capability |
State of Origin |
Taiwan |
