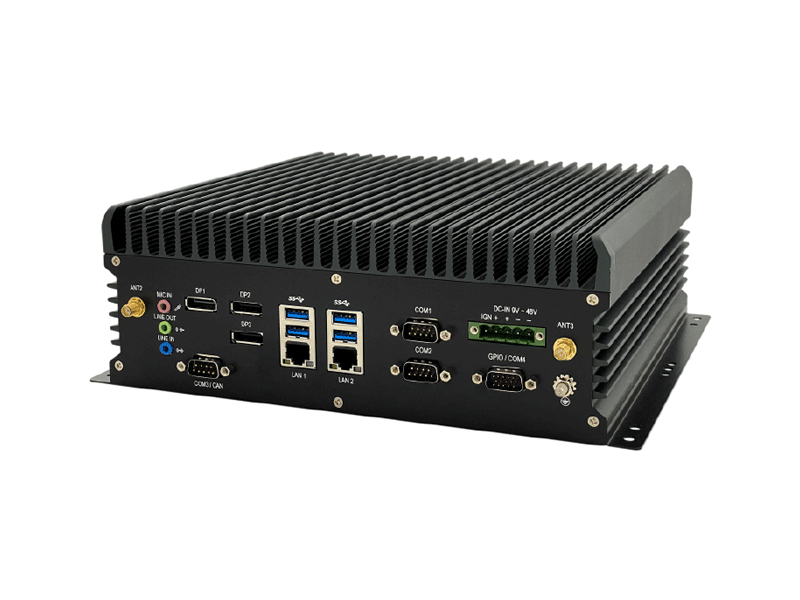

ABOX-5210(P)(G)
Intel® Xeon® W-1290TE Processor / 10th Generation Intel® Core™ i9 Processor / NVIDIA GPU Edge AI Computing System
System
Processor |
Intel® Xeon® W-1290TE (20M Cache 1.8GHz up to 4.6GHz) |
---|---|
Chipset |
Q470E / W480E |
Memory |
2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE) |
Watchdog |
1 ~ 255 Level Reset |
TPM |
2.0 |
Graphics
HDMI |
2 (MXM Graphics) |
---|---|
DisplayPort |
3 (Intel built-in GPU) |
Resolution |
Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz |
Audio
Line-out |
1 |
---|---|
Mic-in |
1 |
Line-in |
1 |
Ethernet
LAN Chipset |
9 x Intel i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers |
---|---|
LAN |
10 x RJ45 Ports for GbE(Optional 8 with M12 X Coded Connectorsd) |
PoE |
Optional 8 x PoE Total Max.120W |
I/O
Serial Port |
3 x RS 232/422/485 (option additional 1 x RS 232/422/485) |
---|---|
USB |
4 x USB 3.2 5Gbps Ports |
DIO |
8 x DI (5~48VDC) and 4 x DO (5VDC, 100mA) |
Storage
Type |
2 x 2.5″ drive bay for SATA TypemPCIe |
---|---|
M.2 |
1 x M.2 2280 Key M slot supports NVMe and SATA SSD |
RAID |
0,1, 5 |
Expansion
Mini PCI Express |
2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot |
---|---|
M.2 |
1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 Slot w/ 2 x SIM Card Sockets for WWAN |
Power
Power Input |
9V – 48V DC Power Input |
---|---|
Power Protection |
Automatics Recovery Short Circuit Protection |
Smart Ignition |
Vehicle Power Ignition for Variety Vehicle |
Power-off Delay Control |
Power off Delay Time Setting by BIOS and Software |
Backup Battery Solution |
Internal Battery Kit for 10 Mins Operating |
Mechanical
Dimension |
260(L) x 250(W) x 95(H) mm |
---|---|
Weight |
5300g (Barebone) |
Construction |
Aluminum Alloy |
Mounting |
Wall-mount |
Environment
Relative Humidity |
10% RH – 90% RH (non-condensing) |
---|---|
Operating Temp. |
-40°C ~ 70°C w/0.6 m/S airflow |
Storage Temp. |
-40°C ~ 80°C |
Certification
Certification |
CE, FCC Class A, E-Mark, ECE R118, EN 50155, EN 45545-2 R25 |
---|
Operational System
Windows |
Windows 10 64bit |
---|---|
Linux |
Ubuntu 20.04 64bit |
Ordering Information
Mode Number |
ABOX-5210xyy-zz (x= P= w/PoE, x= Empty= w/o PoE, yy=G6=RTX 3000, yy=G7=T1000, zz=Z9= W-1290TE, zz= i9= i9-10900TE, zz= i7= i7-10700TE, zz= i5= i5-10500TE, zz= i3= i3-10100TE, zz= C1= G5900TE) |
---|---|
Description |
Intel® Xeon® W Processor / 10th Generation Intel® Core™ Processors w/ NVIDIA® GPU/ 10 x GbE (Optional 8 x PoE)/ 3 x COM/ 3 x DP/ 2 x HDMI/ 4 x USB 3.2 Gen 5Gbps/ 9-48V Input AI GPU Computing |
State of Origin |
Taiwan |
