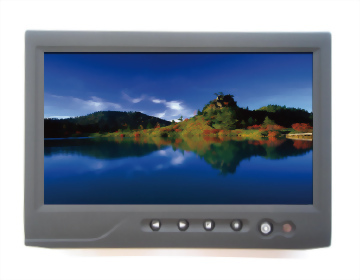

VDM-705W
High Quality 7" VGA TFT LCD Touch Screen
• High Brightness 400cd/m2
• 16:9 Wide Screen
• High Power LEDs Backlight with Mercury-free Solution
• Three Video Inputs
• Two Audio Input(L/R)
• One VGA Input
• USB Interface
• High Brightness 400cd/m2
• 16:9 Wide Screen
• High Power LEDs Backlight with Mercury-free Solution
• Three Video Inputs
• Two Audio Input(L/R)
• One VGA Input
• USB Interface
System
| Screen Size | 7 inch (18cm Diagonal) |
|---|---|
| Display Resolution | 800(H) x RGB x 480(V) |
| Interface | Digital |
| Drive System | TFT active matrix |
| Active Area (mm) | 154.08(H) x 85.92(V) |
| Dot Pitch (mm) | 0.0642(H) x RGB x 0.1790(V) |
| Color Configuration | R.G.B stripe |
| Back Light | High Power LEDs |
| Contrast Ratio | 500:1 |
| Brightness | 400 nits |
| View Angle (T/B/L/R) | 50/70/70/70 deg. |
| Video Source | R.G.B (0.7/1.0Vpp, 75 ohms) |
| Frequency | Fh:30-80Khz, Fv: 60-75Hz |
| Audio | 1W x 1 Speaker |
| Resolution Supported | 640x480~1920x1024 @60/70/75Hz |
| Power Rating | DC9-32V |
| Operation Temp. | -30 to +85 |
| Storage Temp. | -30 to +85 |
| Dimension | 179.43 x 129.43 x 29.5 |
| Certificate | CE/FCC, RoHS |
| TouchKit Driver |
Windows vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0 Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog |
| Accessories | Metal stand x 1, AC switching power supply x1, Car Cigarette lighter adapter x 1, All-In-One cable x 1, Remote controller x 1, Touch driver x 1, Users manual x 1, Touch Stylus x 1, Headrest Shroud x 1 |
- High Brightness 400cd/m2
- 16:9 Wide Screen
- High Power LEDs Backlight with Mercury-free Solution
- Three Video Inputs
- Two Audio Input(L/R)
- One VGA Input
- USB Interface
- Touch Screen Function
- Resolution Support: 640 x 480~ 1920 x 1080 pixels for VGA Mode
- Auto Power On/Off Function
- NTSC/PAL/SECAM Auto Switching
- With Headrest Shroud & Metal Stand
- Auto Reversing Function for Video 3
- Auto Dimmer Function
- DC 9-32V
- CE / FCC / E13 / RoHS
