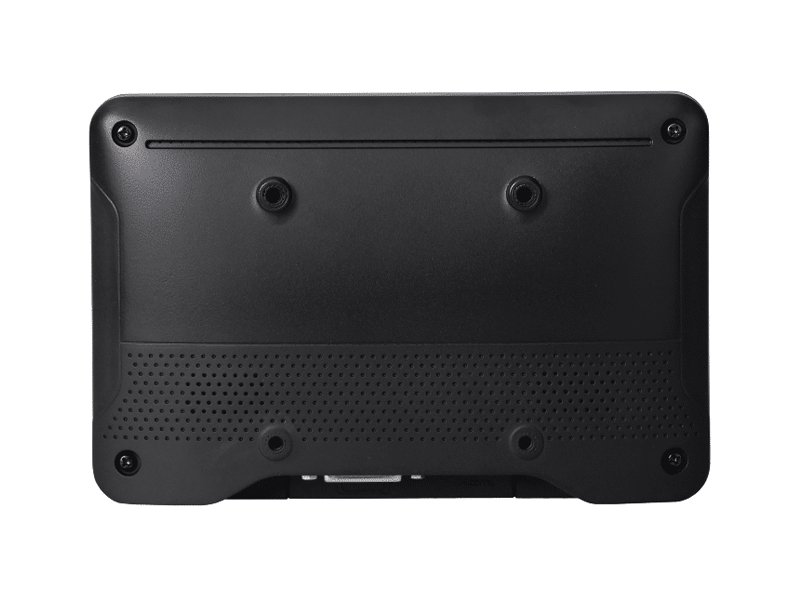

VDM-700HD
720P High Resolution / 560 nits / 1000:1 Contract Ratio / Projected Capacitive Touch / DC 9~48V Front Panel IP65 / In-Vehicle Monitor
• Effortless One-Cable Connection
• 1280(H)×720(V) High Resolution
• High Brightness 560 Nits
• Secondary Video Input (HDMI)
• Projected Capacitive Multi-touch
• 9 ~ 48V DC Power Input
• Operating Temp.: -20 ~ 60°C
• Vehicle Regulation E13
• Effortless One-Cable Connection
• 1280(H)×720(V) High Resolution
• High Brightness 560 Nits
• Secondary Video Input (HDMI)
• Projected Capacitive Multi-touch
• 9 ~ 48V DC Power Input
• Operating Temp.: -20 ~ 60°C
• Vehicle Regulation E13
VDM-700HD is a touch monitor with a wide power input voltage range and operating temperature dedicated to In-Vehicle computing. An ideal operating terminal for fleet management and intelligent cockpit applications on commercial vehicles. The panel resolution of 1280 x 720 and typical brightness of 560 nits excel among other 7” monitors on the market. SINTRONES’ proprietary cable design, which delivers video, audio, touch signal, and power in one cable connection, provides effortless deployment and installation.
| LCD | |
|---|---|
| Screen Size / Ratio | 7 inches / 16:9 |
| Resolution | 1280 (H) × 720 (V) RGB |
| Active Area (mm) | 156.48 (H) × 80.136 (V) mm |
| View Angle (H/V) | 80 / 80 / 80 / 80 Degree |
| Brightness (nits) | 560 nits (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Backlight Type | LED |
| TOUCH | |
| Type | Projected Capacitive with Multi-touch |
| I/O | |
| Multi-IO |
1 x DVI-D 29 pins Connector for DVI-D Single Link Video, Touch (USB 2.0), Line in, MIC out, and DC 9~48V Power input * SINTRONES custom pin definition for SINTRONES optional cable only |
| Secondary Video Input | 1 x HDMI |
| Function Key | 6 x Touch Hotkeys |
| AUDIO | |
| Microphone | 2 x Bulit-in Digital MIC |
| Speaker | Stereo Speaker with Built-in Amplifier |
| MECHANICAL | |
| Dimension | 188.5 (L) x 124.2 (W) x 31.4 (H) mm |
| Mounting | VESA MIS-D 75 mm |
| Weight | 510g |
| IP Rating | (Front) IP65; (others) IP4X |
| POWER REQUIREMENT | |
| Power Input | 9V - 48V DC Power Input |
| ENVIRONMENTAL | |
| Operating Temp. | -20°C ~ 60°C with 0.6 m/s airflow |
| Storage Temp. | -40°C ~ 80°C |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Vibration |
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating |
| Shock | Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) |
| Certifications | CE, FCC Class A, E13 |
| ORDERING INFORMATION | |
| Model Number | VDM-700HD |
| Description | 16:9 7" 560nits In-Vehicle Monitor w/ P-CAP Multi-touch |
