• VDB-400N2 M2 SDI

VDB-400N2 M2 SDI

2 Channel 1080P60 3G-SDI Capture

System

Max. Input Resolution 1920×1080p@60/50fps
Video Input 2×SDI

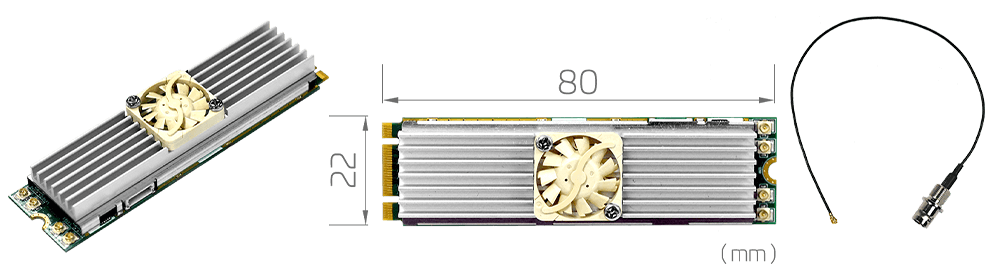

Dimension 22×80 ( mm ), M.2 Type B/M
Interface M.2 ( PCIe×2 )
Feature Multi Instances, Multi Devices
Video Input Detail 3G-SDI
Video Output 2xSDI (Loop-Through)
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode N/A
Video Processing Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions 3G-SDI :
1920×1080p@60/50fps

HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI :
720×480i@60fps
720×576i@50fps
Audio Input 2×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Supported Software Applications vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting
✻ DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10/Windows 11
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
