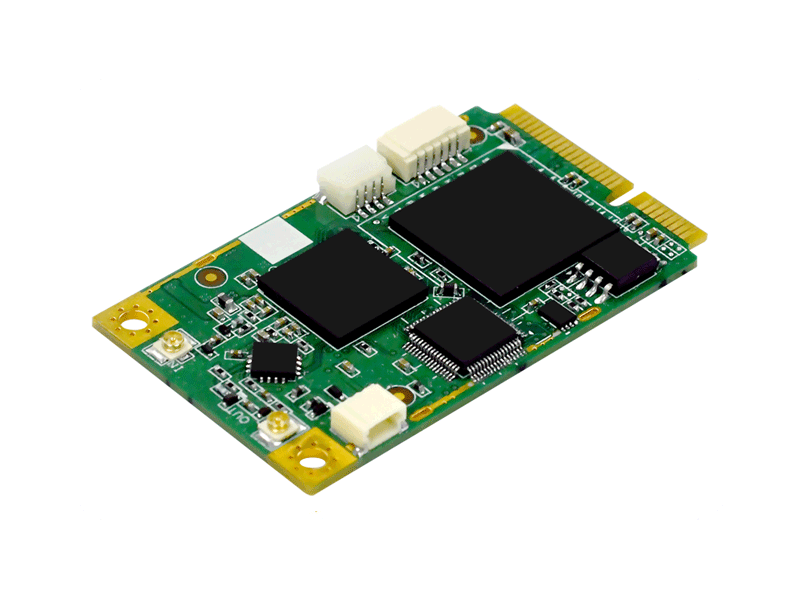

• VDB-400N1 MC SDI

VDB-400N1 MC SDI

1 Channel 1080P60 3G-SDI Capture

System

Related Products

VDB-400N1 MC AIO

VDB-400N1 MC AIO

VDB-400N1 M2 AIO

VDB-400N1 M2 AIO

VDB-400N1 M2 HDV

VDB-400N1 M2 HDV

VDB-400N1 MC HDV

VDB-400N1 MC HDV

VDB-400N2 M2 SDI

VDB-400N2 M2 SDI

VDB-400N2 M2 AIO

VDB-400N2 M2 AIO

Max. FPS 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode Software Compression, Real-Time Mode
Dimension 30x50.95 ( mm )
Interface Minicard (PCIe x1)
Video Input 1×SDI
Video Output 1×SDI ( Loop-Through )
Display Video Format YV12, NV12, YUY2, RGB24, RGB32, P010
Video RAW Data Resolution 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps
Audio Input 1x SDI Embedded Audio
Audio L/R ( Through Wafer Connector )
Audio Output 1×SDI Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10 / Windows 11
Linux 24.8 or Higher ( 32 bit and 64 bit )
CPU Requirement 6th Generation Quad Core Intel I7 CPU / AMD Ryzen 7 ( or Better )
GPU Requirement nVIDIA GeForce GTX10XX ( or Better )
RAM Requirement Dual Channel 16GB RAM
Operating Requirement -10 ~ 70°C
Stoarge Temperature -40 ~ 85°C
Operating Humidity 5% ~ 95%RH ( Non condensing )
MTBF (Hrs) 4,201,225
Safety Certificate Meet CE/FCC Standard
