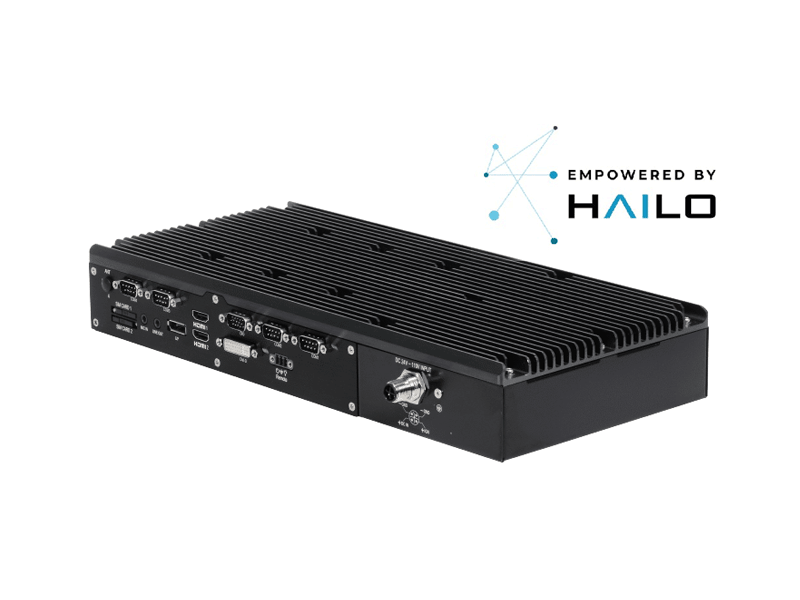

VBOX-3630R-M12X
Intel® 11th Gen Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer
• Intel® 11th Gen Core™ i7-1185G7E
• Support 5G/LTE (Dual by option), GPS, Wi-Fi / BT and CAN bus
• Wide Input Range 9 ~ 60VDC w/ Ignition Control for Vehicles
• Isolated DC Input 24 ~ 110VDC with Power Management for Rolling Stock
• 1x 2.5GbE + 3x GbE LAN Port (Optional M12 Connectors)
• Support 4 Independent Display by 2x HDMI, 1x DP, 1x DVI-D
• Supports Optional Backup Battery Kit
• EN50155 Certified
• Intel® 11th Gen Core™ i7-1185G7E
• Support 5G/LTE (Dual by option), GPS, Wi-Fi / BT and CAN bus
• Wide Input Range 9 ~ 60VDC w/ Ignition Control for Vehicles
• Isolated DC Input 24 ~ 110VDC with Power Management for Rolling Stock
• 1x 2.5GbE + 3x GbE LAN Port (Optional M12 Connectors)
• Support 4 Independent Display by 2x HDMI, 1x DP, 1x DVI-D
• Supports Optional Backup Battery Kit
• EN50155 Certified
VBOX-3630R-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. It features an ultra-compact design measuring 250 x 165 x 55 mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630R-M12X can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.
System
| CPU |
11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz 11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz 11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz |
|---|---|
| Memory | 2x DDR4-3200 SO-DIMM Up to 64GB |
| LAN Chipset |
1 x Intel® 1255-LM 2.5GbE Supports mGig Supports iAMT and PXE LAN Boot ROM 3 x Intel® 1210-AT Gigabit Ethernet |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| TPM | 2.0 |
Power Requirement
| Power Input | Isolated DC Input 24-110VDC |
|---|---|
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Power Ignition for Vehicle |
| Power Off Control | Power off Delay Time Setting by Software |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional. Discharge Temp. -20~60°C) Patent No. : M447854 - Build-in Battery *UPS backup time varies depending on actual overall system power consumption. |
Graphics
| Chipset | Intel® Iris® Xe Graphics / Intel® UHD Graphics |
|---|---|
| Resolution |
Max Resolution (HDMI2.0b): 4096 x 2304@60Hz Max Resolution (DP): 4096 x 2304@60Hz |
I/O
| Serial Port | 4 X RS-232/422/485 (Auto Direction Control) (3 Ports for M12 Model) |
|---|---|
| USB Port |
2 x USB 3.2 Gen 2 (Type A) 2 x USB 2.0 (Type A) |
| LAN |
4 x RJ45 (1 x 2.5GbE, 3 x GbE) (Option: M12 connector and/or IEEE 802.3af/at PoE w/ Max. 60W power budget) |
| Video Port | 2 x HDMI, 1 x DP, 1 x DVI-D* (Supports 4 Independent Display) |
| DIO Port |
6 x DI (5~60V) and 4 x DO (5V/100mA) (option: 2 x 12V/1A output) |
| Audio | 1 x Line-out and 1 x Mic-in (Line-in optional) |
| SIM Card Socket | 2 x SIM Card Sockets Supported Onboard with Eject |
| Expansion Bus |
1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card) 1 x M.2 2230 Key A-E, 1 x mPCIe Full Size (USB function only) |
| Antenna | 7 x Pre-cut Holes for External SMA Antenna |
Mechanical & Environmental
| Dimension (LxWxH) | 250(L) x 165(W) x 55(H) mm |
|---|---|
| Weight | 2.50 kg |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. |
-40 ~ 70°C, ambient w/ 0.6m/s airflow Patent No. : M448011 - Thermal Cooling |
| Storage Temp. | -40 ~ 85°C |
| Certifications | CE, FCC Class A, E13, EN50155. EN45545-2 (R25) |
| Patent No. | M447854, M448011 |
