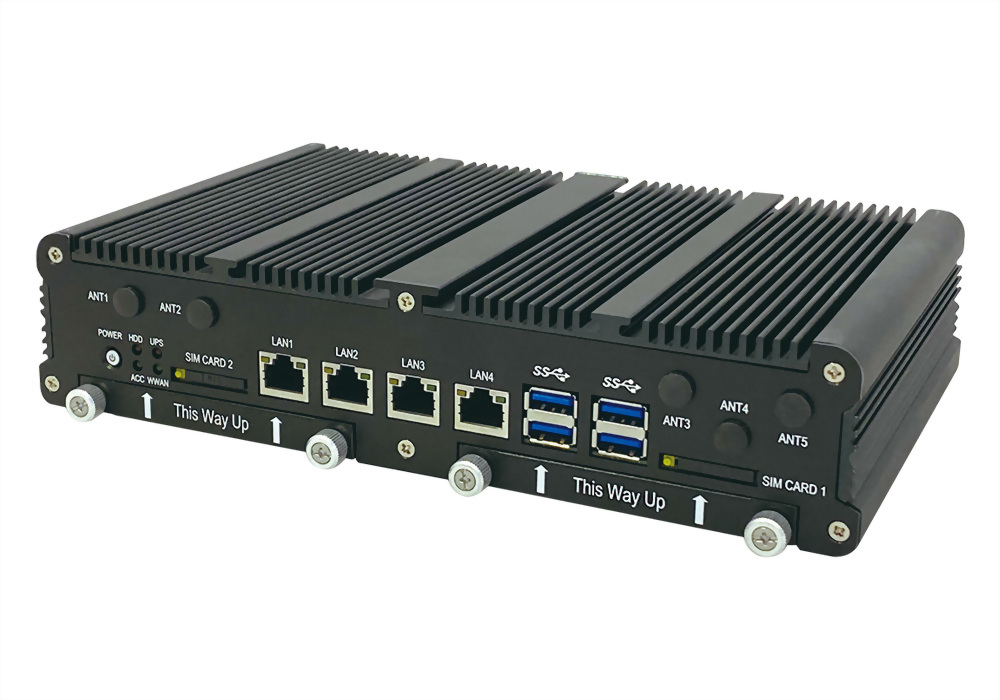

VBOX-3611-4L-D5G
In-Vehicle Computer with Intel Gen 6 Core i7-6600U CPU
• Intel Core i7-6600U
• Wireless support Dual 5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT(Optional)
• 9V~48V DC Power Input
• Smart Vehicle Power Ignition for Variety Vehicle
• Dual Hot Swappable SATA Storage, RAID 0, 1, 5
• 1 x CAN Bus 2.0B (Optional)
• E13 and EN50155 certified
• Intel Core i7-6600U
• Wireless support Dual 5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT(Optional)
• 9V~48V DC Power Input
• Smart Vehicle Power Ignition for Variety Vehicle
• Dual Hot Swappable SATA Storage, RAID 0, 1, 5
• 1 x CAN Bus 2.0B (Optional)
• E13 and EN50155 certified
VBOX-3611-4L-D5G, as an In-Vehicle Computer, is powered by Intel Gen 6 Core i7-6600U CPU and features wide range 9~48V DC power inputs, smart vehicle power ignition, and adjustable power management. Dedicated power system design for a variety of vehicles is E13 and EN50155 certified, and can be adapted to unstable vehicle power source with ease. Optional CAN Bus and GPS Dead Reckoning provide interfaces for real time vehicle status monitoring and accurate location tracking. With addition of unique and first in the industry design of Dual 5G Networks capability, VBOX-3611-4L-D5G fulfills applications needs of blazing fast mobile internet connection through aggregating networks and secondary 5G connection for redundancy in modern transportation, smart production, logistics, manufacturing, and automated guided vehicles (AGVs) sectors.
| SYSTEM | |
|---|---|
| CPU |
Intel Gen 6 (Skylake-U) Core i7-6600U CPU Intel Gen 6 (Skylake-U) Core i5-6300U CPU Intel Gen 6 (Skylake-U) Core i3-6100U CPU Intel Gen 6 (Skylake-U) Celeron 3955U CPU CPU Socket type : FCBGA1356 |
| Memory | Supports up to 2 x SO-DIMM DDR4 2133MHz up to 32GB |
| Chipset | Intel 6th Generation Core SoC Processor |
| LAN Chipset |
3 x Intel i210-AT GbE Controllers 1 x i219LM (support iAMT and PXE support) GbE Controller |
| Audio | Realtek HD Codec Onboard |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| TPM | 2.0 |
| POWER REQUIREMENT | |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional) *UPS backup time varies depending on actual overall system power consumption. Patent No. : M447854 - Build-in Battery |
| GRAPHICS | |
| Graphics |
Intel UHD Graphics 520 (for i7, i5, and i3) Intel UHD Graphics 510 (for Celeron) |
| STORAGE | |
| Type |
2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 1 x M.2 M key 2280 slot supports M.2 SATA SSD |
| I/O | |
| Serial Port | 2 x RS 232/422/485 (with RS-422/485 Auto Direction Control) |
| USB Port | 4 x USB 3.2 Gen1 Type A |
| LAN |
4 x RJ-45 for GbE (LAN 1 with iAMT and PXE support) Optional 4 x M12 X-code for GbE (LAN 1 with iAMT and PXE support) |
| Video Port |
1 x DVI-I Single link* , 1 x DP 1.2, 1 x VGA * Use only with Single Link DVI Cables. |
| DIO Port | 4 x DI (5~48VDC) and 4 x DO (12VDC, 100mA) |
| Audio | 1 x Line out , 1 x Line-in |
| SIM Card Socket | 2 x SIM Card Sockets (Onboard with Pin eject) |
| Expansion Bus |
1 x M.2 2230 A-E Key 2 x M.2 3042/52 B Key (USB 3.0 only) 2 x Full Mini-PCIe (full function) |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions | 250 x 150 x 55 mm |
| Weight | 2160g (bare-bone) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. |
-40ºC ~ 70ºC, ambient w/ 0.6m/s airflow Patent No. : M448011 - Thermal Cooling |
| Storage Temp. | -40 ~ 85°C |
| Certifications | CE, FCC Class A, E13, EN50155, EN45545-2 (R25) (The input Negative connects with chassis Ground) |
| Patent No. (Taiwan) | M447854, M448011 |
| ORDERING INFORMATION | |
| Part Number | VBOX-3611-4L-D5G, option for i5/i3/C1 |
| Description | Intel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer with Dual 5G Modem Capability |
