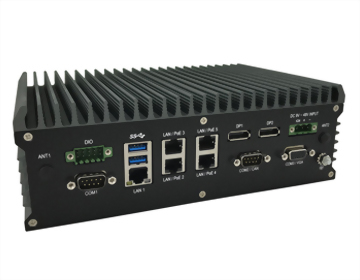

VBOX-3210
AMD Merlin Falcon Enbedded Platform RX-421BD/RX-216GD APU with 2xDP / 2xCOM / 5xGbE / 4xPOE / 2xUSB3.0 / DC Input 9~48V In-Vehicle Computer
• AMD Merlin Falcon RX-421BD/RX-216GD
• Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
• 5 x GbE w/optional 4 x POE 802.3at
• Input 9-48V with lgnition for Variety Vehicle
• 3 x Mini PCIe card & 1 x M.2 for extension
• 2 x DP, 1 x VGA
• AMD Merlin Falcon RX-421BD/RX-216GD
• Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
• 5 x GbE w/optional 4 x POE 802.3at
• Input 9-48V with lgnition for Variety Vehicle
• 3 x Mini PCIe card & 1 x M.2 for extension
• 2 x DP, 1 x VGA
The VBOX-3210 In-Vehicle Computer is perfect for managing public service vehicles e.q. train, police patrol, and buses. It is powered by AMD Merlin Falcon Embedded Platform RX-421BD/RX-216GD/DC Input 9~48V. VBOX-3210 features Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, and Bluetooth for in-vehicle communication, supporting real-time data transaction and monitoring. In addition, the RX series provides an additional M.2 A-E Key to connect a hi-speed solid state drive for extra storage. It features an optional battery backup kit for continuous operations for an extra 10 minutes after power drain or failure of the main power source to increase the reliability of the system.
System
| CPU | AMD RX-421BD Quad Core 2.1GHz up to 3.4 GHz* |
|---|---|
| AMD RX-216GD Dual Core 1.6GHz up to 3.0 GHz (Optional GX-224IJ, GX-215JJ) | |
| *Config to 15W | |
| Memory | 2 x SO-DIMM DDR4 up to 32GB (only 1 slot for GX series) |
| ATA | 2 x Serial ATA GEN 3.0 |
| Graphics | AMD Radeon™ graphics |
| LAN Chipset | 2 x Intel i210-AT; Ethernet Swtich: 1 x Marvell 88E6176 |
| Watchdog | 1 – 255 Level Reset |
Power Requirement
| Power Input | 9V -48V DC Power Input |
|---|---|
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power on/off Delay Time Setting by Software |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
I/O
| Serial Port | 2 x RS232/422/485 (option additional 2 x RS232) |
|---|---|
| USB Port | 2 x USB 3.0 Ports, 2 x USB 2.0 Ports |
| LAN |
5 x RJ45 Ports GbE (Optinal for 4 x POE 802.3at/af*) * When Power Input >= 24V, total PoE outputs is 100W max. * When Power Input < 24V, total PoE output is 60W max. |
| Video Port | 2 x DP, 1 x VGA (only for RX series) |
| GPIO Port | 4 in and 4 out |
| Audio | Mic-in/Line-out/Line-in |
| Expansion Bus | 3 x Mini-card slots, 1 x M.2 A-E key 2230 (only for RX series) |
| Antenna | 6 x SMA-type External Antenna Connectors |
| SIM Card socket | 2 x SIM Card sockets Supported Onboard with eject |
Operating System
| Validation | WES 7, Windows 10, Linux Ubuntu 16.04 |
|---|
Mechanical & Environmental
| Dimension (LxWxH) | 240 x 161 x 85 mm |
|---|---|
| Weight | 1405g (bare-bone) |
| Relative Humidity | 5 ~ 95% (non-condensing) |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 85°C |
| Certifications | CE, FCC Class A, E13 |
| Patent No. | M447854 |
