VBOX-3131
Intel Celeron N3060 Braswell CPU In-Vehicle Computer with 9~60V DC Input
• Intel N3060 Core CPU up to 2.48GHz
• Wireless support 5G/LTE/GPS, Wifi+Bluetooth(by Optional M.2 modules)
• 9V - 60V DC Power Input
• Smarter Vehicle Power Ignition for Variety Vehicle
• Ultra compact Design 150 x 135 x 55.3 mm
• Battery backup (Option)
• Intel N3060 Core CPU up to 2.48GHz
• Wireless support 5G/LTE/GPS, Wifi+Bluetooth(by Optional M.2 modules)
• 9V - 60V DC Power Input
• Smarter Vehicle Power Ignition for Variety Vehicle
• Ultra compact Design 150 x 135 x 55.3 mm
• Battery backup (Option)

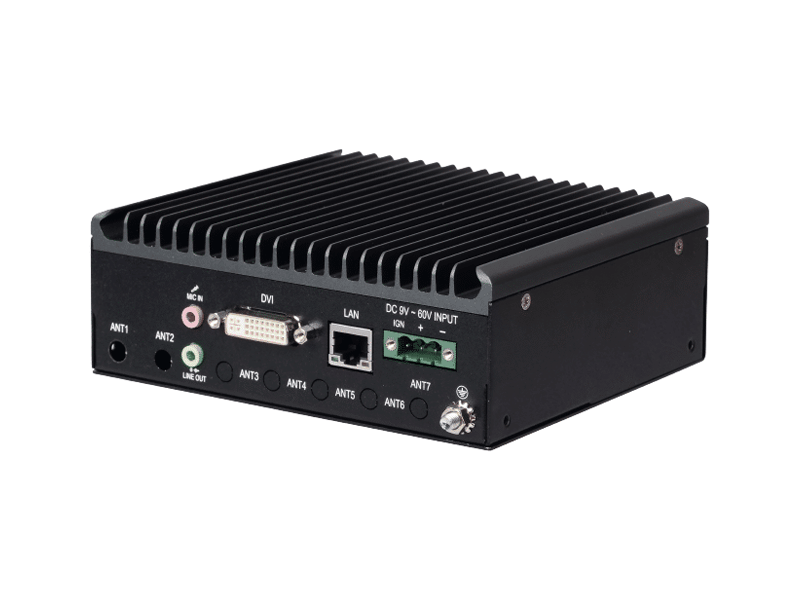

VBOX-3131 is an ultra-compact size fanless In-Vehicle Computer with 5G connectivity. It utilizes Intel® Celeron® N3060 Dual-Core CPU up to 2.48GHz. VBOX-3131 features an ultra-compact design measuring 150 x 135 x 53mm, which can easily fit into restricted spaces. As robust connectivity, the system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth by M.2 modules. It is a building-in dual independent DVI-D, audio line out, and microphone In, the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in variety of vehicles.VBOX-3131 can effectively support cars in extreme weather and operating conditions, such as snowplows, Trucks, Buses, taxis, and Forklifts. With Intel N3060, VBOX-3131 has wireless connectivity such as 5G, LTE, Wi-Fi, Bluetooth, and an ultra-compact enclosure with dual DVI-D and Audio. Sintrones' VBOX-3131 is a compact and versatile in-vehicle computer that can fuel various transportation systems.
| SYSTEM | |
|---|---|
| CPU | Intel N3060 Dual Core CPU up to 2.48GHz |
| Memory | 1 x DDR3L-1600 SO-DIMM up to 8GB |
| Graphics | Intel HD Graphics |
| LAN Chipset | 1 x Intel i210AT Gigabit Ethernet |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
| POWER REQUIREMENT | |
| Power Input | 9V -60V DC Power Input |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by BIOS and Software |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional) *UPS backup time varies depending on actual overall system power consumption. Patent No. : M447854 - Build-in Battery |
| I/O | |
| Series Port | 2 x RS 232/422/485 (Option, Model name VBOX-3131-2S) |
| USB Port |
2 x USB 3.2 Gen 1x1 2 x USB 2.0 |
| LAN | 1 x RJ45 port for GbE |
| Video Port |
1 x HDMI, 1 x DVI-D * Use only with Single Link DVI Cables. |
| DIO Port | 2 x Analog Input (9~60V), 4 x DI (5V~60V), 4 x DO (5V/100mA/port) |
| Audio | 1 x Mic-in, 1 x Line-out |
| Expansion Bus |
1 x M.2 3042/3052 B Key for LTE/5G module 1 x M.2 2230 A-E Key for Wifi+Bluetooth 1 x miniPCIe slot support (USB+PCIe bus or mSATA) |
| Antenna | 7 x Pre-cut SMA holes for Antenna Connectors |
| SIM Card Socket | 2 x SIM Card Sockets Supported Onboard |
| STORAGE | |
| Type |
1 x M.2 2280 M key support SATA Bus *Additional heat Sink is required. Please contact with Sales Window for suitable model. |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions (LxWxH) | 150(L) x 135(W) x 55.3(H) mm |
| Mounting | Wall-mount, VESA-mount |
| Weight | 1100g |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -30 ~ 60ºC, ambient w/ 0.6m/s airflow |
| Storage Temp. | -30 ~ 85ºC |
| Certifications | CE, FCC Class A, E13, ECE R118 |
| Patent No. (Taiwan) | M447854 |
| ORDERING INFORMATION | |
| Part Number | VBOX-3131, VBOX-3131-2S (w/optional 2 x RS232/422/485) |
| Description | Intel Celeron N3060 Braswell CPU In-Vehicle Computer with 9~60V DC Input In-Vehicle Computer |
