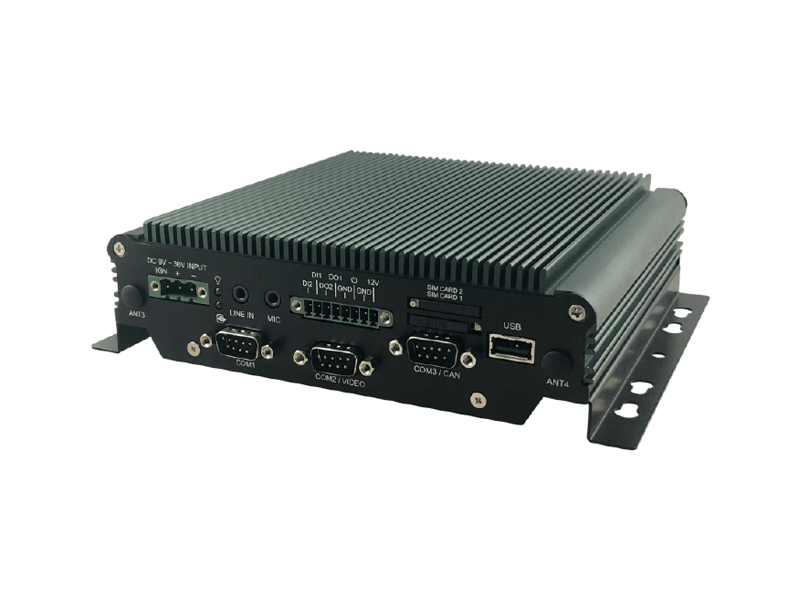

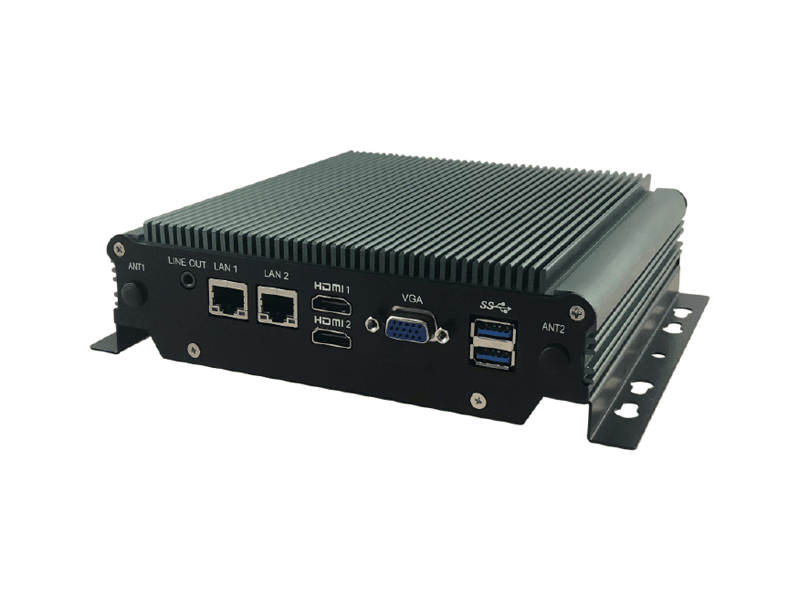

VBOX-3121
Intel Gen 6 i7-6600U with HD Graphic 520/ 2 x LAN/ 2 x HDMI/ VGA with 3 x RS-232/ DC 9-36V Input In-Vehicle Computer
• Intel Gen 6 Core i7-6600U
• Wireless support LTE, WLAN, GPS, GSM/GPRS, BT (Option)
• 9V - 36V DC Power Input
• Smarter Vehicle Power Ignition for Variety Vehicle
• 4 x RS-232/422/485 (for i7 and i5)
• 2 x DI / 2 x DO (12V / 100mA)
• Intel Gen 6 Core i7-6600U
• Wireless support LTE, WLAN, GPS, GSM/GPRS, BT (Option)
• 9V - 36V DC Power Input
• Smarter Vehicle Power Ignition for Variety Vehicle
• 4 x RS-232/422/485 (for i7 and i5)
• 2 x DI / 2 x DO (12V / 100mA)
System
| CPU |
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz |
|---|---|
| Memory | 1 x DDR4 SO-DIMM up to 16GB |
| Graphic | Intel HD Graphics |
| ATA | 2 x Serial ATA 2.0 Ports with 6Gb/s HDD Transfer Rate |
| LAN Chipset |
1 x Intel i210-AT Gigabit Ethernet 1 x Intel i219-LM Gigabit Ethernet (LAN 2), support iAMT for i5 & i7 |
| Watchdog | 1 ~ 255 Level Reset |
Power Requirment
| Power Input | 9V -36V DC Power Input |
|---|---|
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by BIOS and Software |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
I/O
| Serial Port |
4 x RS-232/422/485 (for i7 and i5) 3 x RS-232/422/485 (for i3 and C1) |
|---|---|
| USB Port | 2 x USB 3.0 and 1 x USB 2.0 Ports |
| LAN | 2 x RJ45 ports for GbE |
| Video Port | 2 x HDMI / 1 x VGA |
| GPIO Port | 2 In and 2 Out (12V / 100mA) |
| Audio | Mic-in / Line-out |
| Expansion bus | 2 x Mini-card Slots (1 with SIM for LTE only), 1 x M.2 A-E Key Slot |
| Antenna | 4 x SMA-type External Antenna Connectors for WLAN / UMTS / GSM / GPRS / GPS / Bluetooth |
| SIM Card Socket | 2 x SIM Card sockets supported onboard with eject |
Mechanical & Environmental
| Dimension (LxWxH) |
250 x 167.6 x 54 mm (for i7 and i5) 182 x 167.6 x 54 mm (for i3 and C1) |
|---|---|
| Weight | 1.406 kg |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -40 ~ 70ºC (SSD), ambient w/ 0.6m/s airflow |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, E-13 |
| Partnet NO. | M447854 |
