• RIFA-M

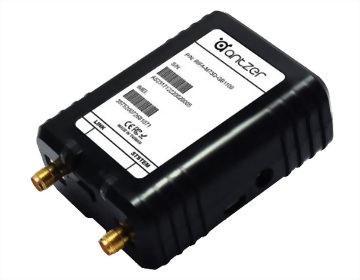

RIFA-M

Multifunctional GPS Tracker

• Build-in Multifunctional Connector for I/Os
• Configurable Vehicle Protocols, Support OBDII and J1939
• Mobileye® Protocol Compatible
• Built-in G-Sensor for Harsh Condition Detection
• Modularized Design for Bluetooth, 3G, LTE Cat-1, Cat-NB1/Cat-M1, and LoRa Communication

Multifunctional GNSS Vehicle Tracker : RIFA-M Series

ANTZER TECH’s Automotive-Grade RIFA-M vehicle tracker provides a compact, economic, multifunctional I/O for fleet management market. RIFA’s self-designed system not only supports OBDII and J1939 protocols, but also integrates Mobileye® protocol interpreter, superior cellular modem, highly-sensitive GPS and accelerometer in one end-to-end solution. With external antennas for both GPS and Cellular modules, RIFA engineers a truly robust connectivity. ANTZER TECH’s RIFA-M tracker is a perfect solution for system Integration, fleet management, usage-based insurance, driver behavior management, auto rental and automotive applications.

General
  • Vehicle Interface : 20pin MicroFit Connector
  • Messages : 12,000 Buffered Messages
  • Geofencing : Geofences Zones (Polygon, Rectangular or Circle Setting)
  • Configuration : Over-The-Air Firmware and Remote Maintenance API
Vehicle Network
  • Protocol Support : ISO15765-4 On-Board Diagnostic, J1939 and optional Mobileye® Protocol
Cellular Network
  • Frequency Band (WWAN Module Selected)
    • GSM/GPRS: 850,900,1800,1900 Mhz
    • HSPA/UMTS: 800,850,900,1700,1900,2100 Mhz
    • LTE Cat-1: Band 4, 13 or Band 3,7,20
    • LTE Cat-M1 and Cat-NB1: Band 2,3,4,5,8,12,13,20,28
    • LoRa1: US915, EU868, AS923
  • Data Protocol : TCP, UDP, MQTT, LoRaWAN
Wireless Network
  • Bluetooth : 2.4GHz Low Energy Bluetooth Class 2
GPS
  • Chipset : Ublox Neo M8 Engine, 72Channels support GPS, Galileo, GLONASS, BeiDou
  • Dead Reckoning : Optionally Support UDR and CAN-to-ADR, Tracking with GPS Signal Loss
Sensor
  • 3-Axis G-sensor with Auto-Calibrating Function
LED Indicator
  • x2 LEDS (2 Colors each for GPS, Cellular Network, and System Status)
SIM Card
  • Form Factor : Mini SIM 2FF (25 x 15 mm)
Comprehensive I/O
  • MicroFit Connector
    • Dual CAN Ports for OBDII, J1939 or Mobileye® Signal Input
    • x1 RS-485 and x1 RS-232
    • x2 Digital Input and x2 Digital Output (300mA)
    • x1 Analog Input and x1 1-wire Interface
    • x1 Ignition Input Detect, x1 Buzzer Out
Audio
  • x1 Mic-in and x1 Headphone-out (support HSPA and LTE CAT-1)
Configuration Port
  • Micro USB with 5V Power Input (without battery)
Power
  • Power Input Range : 9~32V DC Power Input from Micro Fit Connector
  • Power Mode : Operating Mode, Sleep Mode, and Battery Mode
  • Min. Power Consumption : <4.5 mA @ 12V (Sleep mode), Support CAN Wakeup Function
Buzzer
  • Built-in Buzzer for System Status
Environment
  • Operating Temperature : -30 to 70 °C (Without Battery); -20 to 70 °C (With Battery)
  • Storage Temperature : -40 to 85 °C
  • Certificate and Vibration : CE, FCC, RoHS and MIL-STD-810G 514.6
  • Humidity : 10% to 90% R.H. (Non-Condensing) Compliant
Dimensions
  • 72 x 56 x 28 mm
Battery
  • Lithium Ion Polymer Battery : Optionally support Built-in 3.7V 130mAh Battery
  • Build-in Multifunctional Connector for I/Os
  • Configurable Vehicle Protocols, Support OBDII and J1939
  • Mobileye® Protocol Compatible
  • Built-in G-Sensor for Harsh Condition Detection
  • Modularized Design for Bluetooth, 3G, LTE Cat-1, Cat-NB1/Cat-M1, and LoRa Communication
  • Optionally Support Untethered Dead Reckoning (UDR) and Automotive Dead Reckoning through CANbus (CAN-to-ADR)
  • Geofence with Polygon, Rectangular and Circle Settings
  • AGPS1 for Faster Cold Start
  • Sleep Mode for Power Saving and Auto Self-Diagnostic
  • Support Firmware Over-the-Air (FOTA)2 Upgrade and Configuration
