RIFA-B

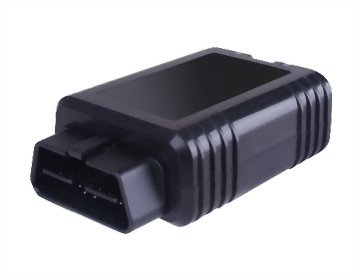

OBDII & J1939 Easy Plug GPS Tracker

• Build-in OBDII connector, Easy Plug and Track
• Configurable Vehicle Protocols, Support OBDII and J1939
• Built-in G-Sensor for Harsh Condition Detection
• Modularized Design for Bluetooth, 3G, LTE Cat-1, Cat-NB1/Cat-M1, and LoRa Communication
• Optionally Support Untethered Dead Reckoning (UDR) and Automotive
• Dead Reckoning through CANbus (CAN-to-ADR)

ANTZER TECH’s Automotive-Grade RIFA OBDII/J1939 vehicle tracker provides a compact, economic, easy plug and track dongle for fleet management market. RIFA’s self-designed firmware not only supports OBDII and J1939 protocols, but also integrates superior cellular modem (modularized), highly sensitive GPS and accelerometer in one end-to-end solution. With built-in antennas for both GPS and Cellular modules, RIFA engineers a truly robust connectivity. Tracking unit is a perfect solution for fleet management, usage-based insurance, driver behavior management, auto rental and automotive applications.



General
  • Vehicle Interface : Built-in OBD-II(J1962) Compliant Connector
  • Messages : 12,000 Buffered Messages
  • Geofencing : Geofences Zones (Polygon, Rectangular or Circle Setting)
  • Configuration : Over-The-Air Firmware and Remote Maintenance API
Vehicle Network
  • Connector Type : SAE J1962, Male
  • OBD-II(J1962) Connector : CANbus, Power and Ground
  • Vehicle Protocols : ISO15765-4 On-Board Diagnostic and J1939
Cellular Network
  • Frequency Band (WWAN Module Selected)
    • GSM/GPRS: 850,900,1800,1900 Mhz
    • HSPA/UMTS: 800,850,900,1700,1900,2100 Mhz
    • LTE Cat-1: Band 4, 13 or Band 3,7,20
    • LTE Cat-M1 and Cat-NB1: Band 2,3,4,5,8,12,13,20,28
    • LoRa1: US915, EU868, AS923
  • Data Protocol : TCP, UDP, MQTT, LoRaWAN
Wireless Network
  • Bluetooth : 2.4GHz Low Energy Bluetooth Class 2
GPS
  • Chipset : Ublox Neo M8 Engine, 72Channels support GPS, Galileo, GLONASS, BeiDou
  • Dead Reckoning : Optionally Support UDR and CAN-to-ADR, Tracking with GPS Signal Loss
Sensor
  • 3-Axis G-sensor with Auto-Calibrating Function
LED Indicator
  • x2 LEDS (2 Colors each for GPS, Cellular Network, and System Status)
Wake Up Solution
  • System wake up by CAN bus data input
  • System wake up by G-Sensor data input
  • System wake up by Ignition data input
SIM Card
  • Form Factor : Mini SIM 2FF (25 x 15 mm)
Configuration Port
  • MicroUSB Port for Configuration
Power
  • Power Input Range : 9~32V DC Power Input from OBDII Connector
  • Power Mode : Operating Mode, Sleep Mode, and Battery Mode
  • Min. Power Consumption : <3 mA @ 12V (Sleep mode), Support CAN Wakeup Function
Buzzer
  • Built-in Buzzer for System Status
Environment
  • Operating Temperature : -30 to 70 °C (Without Battery); -20 to 70 °C (With Battery)
  • Storage Temperature : -40 to 85 °C
  • Certificate and Vibration : CE, FCC, RoHS and MIL-STD-810G 514.6
  • Humidity : 10% to 90% R.H. (Non-Condensing) Compliant
Dimensions
  • 86 x 56 x 28 mm
Battery
  • Lithium Ion Polymer Battery : Optionally support Built-in 3.7V 130mAh Battery
  • Build-in OBDII connector, Easy Plug and Track
  • Configurable Vehicle Protocols, Support OBDII and J1939
  • Built-in G-Sensor for Harsh Condition Detection
  • Modularized Design for Bluetooth, 3G, LTE Cat-1, Cat-NB1/Cat-M1, and LoRa Communication
  • Optionally Support Untethered Dead Reckoning (UDR) and Automotive Dead Reckoning through CANbus (CAN-to-ADR)
  • Geofence with Polygon, Rectangular and Circle Settings
  • AGPS1 for Faster Cold Start
  • Sleep Mode for Power Saving and Auto Self-Diagnostic
  • Support Firmware Over-the-Air (FOTA)2 Upgrade and Configuration
