MBOX-4000

Fanless Embedded System with Intel Elkhart Lake platform

• Intel Atom® Processor x6000, N6000, J6000 Series
• 2 DP++, resolution up to 4096x2160 @ 60Hz
• OpenGL 4.5, DirectX 12, Open CL 1.2
• Support Microsoft Windows 10/Linux
• Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
• Rich I/O: 2.5GbE, SATA, USB 3.2, USB 2.0, 8bit GPIO, SMBus
• Support TPM 2.0 (optional)

Processor

CPU

Intel Embedded Series
Intel® Atom® x6425E Processor, Quad Core, 1.5M Cache, 2.0GHz (3.0GHz), 12W
Intel® Atom® x6413E Processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W Intel® Atom® x6211E Processor, Dual Core, 1.5M Cache, 1.3GHz (3.0GHz), 6W Intel Industrial Series
Intel® Atom® x6425RE Processor, Quad Core, 1.5M Cache, 1.9GHz, 12W
Intel® Atom® x6414RE Processor, Quad Core, 1.5M Cache, 1.5GHz, 9W
Intel® Atom® x6212RE Processor, Dual Core, 1.5M Cache, 1.2GHz, 6W
Intel PC Client Series
Intel® Celeron® N6210 Processor, Dual Core, 1.5M Cache, 1.2GHz (2.6GHz), 6.5W

Memory

One 260-pin SO-DIMM up to 32GB, DDR4 up to 3200MHz (in-band ECC support in embedded/industrial SKU)

Operating System

Microsoft Windows 10/ Linux

Expansion Slot

M.2 (B key)

1 2242/3042/2280 (PCIe x1/SATA3.0/USB2.0)

M.2 (E key)

1 2230 (PCIe x1/USB2.0)

Nano SIM socket

1 (connected to M.2 B key)

Physical Characteristics

Dimension

223 x 139 x 44 mm

Weight TBD

Environment

Operating Temp.

Standard SKU: 0°C~50°C Wide Temp SKU: -20°C~70°C

Storage Temp.

-40 ~ 85°C

Relative Humidity

5 to 95% RH (non-condensing)

Vibration (Operating)

IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, 3G, 5 ~ 500 Hz, 1 hr/axis

Shock (Operating)

IEC 60068-2-27 Test Ea: Shock Test, 30 G, half sine, 11 ms duration

Graphics

Controller

Intel® UHDGraphics

Feature

OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9

HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9

DP++

2 x DP++, resolution up to 4096x2160 @ 60Hz

Storage

SATA DOM

up to 512GB

M.2 (B key)

up to 2TB

Front I/O

Buttons

Power Button

USB

2 (2 x USB 2.0)

Serial

4(DB9)
COM1: RS232/PWR,
COM2: RS232/RS485/RS422, COM3: RS232, COM4: RS232

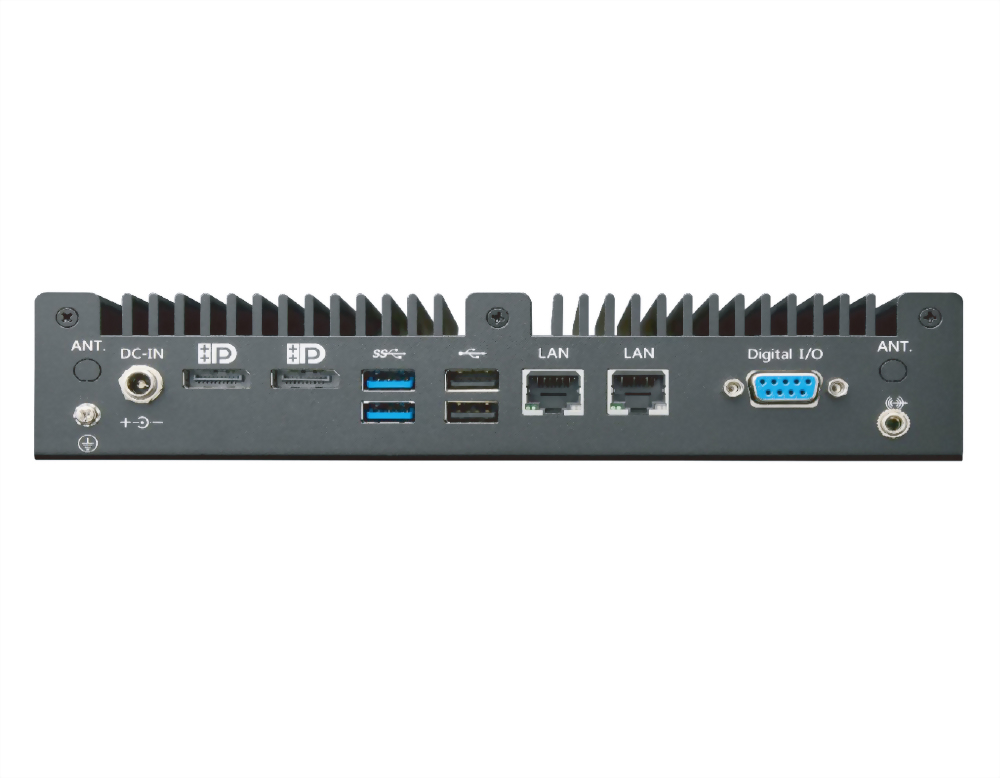

Rear I/O

Buttons

2

USB

4(2 x USB 3.2 /2 x USB 2.0)

Serial

2 (Intel I225)

Power Supplier

Type

Single 12 +/-10% DC

Connector

DC Jack

Warranty

Warranty

2 years

Certification

Certification

CE/FCC/RoHS
