HS CAN Bus Module
Mini PCI Express Card with CAN Bus Interface
• Supports a bitrate from 40 to 1,000 kbit/s and a CAN transfer rate up to 20,000 messages/s.
• Time stamp accuracy is 25 μs.
• Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
• A 4-pin Molex connector provides single CAN channel access.
• Supports a bitrate from 40 to 1,000 kbit/s and a CAN transfer rate up to 20,000 messages/s.
• Time stamp accuracy is 25 μs.
• Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
• A 4-pin Molex connector provides single CAN channel access.

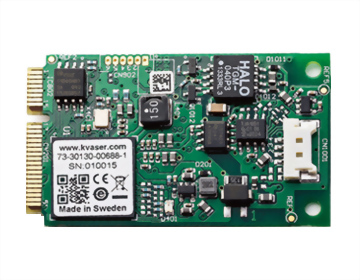

The Kvaser Mini PCI Express HS is a highly-integrated CAN (controller area network) add-on board that lets embedded system developers add CAN functionality to any standard computer board with mini PCI Express capability. The add on board offers a single channel, high speed CAN interface with error frame detection and on-board buffer. This board has a low profile connector that complies with the mini PCI Express standard, which connects via a cable to a DSUB connector (or other type) at the computer housing. With just the CAN communication link itself exposed, total system EMC performance is protected because all the electronics remain inside the computer housing.
System
| Bitrate | 40-1000 kbps |
|---|---|
| Temp Range | -40 - 85 °C |
| Messages Per Second Receive | 14000 mps |
| Messages Per Second Sending | 18000 mps |
| Weight | 100 g |
| Length | 50 mm |
| Height | 5 mm |
| Channels | 1 |
| Certificates | CE, RoHS |
| Interfaces | Mini PCI Express |
| Categories | PC Interfaces, Interfaces |
| OS | Windows 10, 8, 7, Vista, XP, and Linux |
| Connectors | Molex 53780 PanelMate TM |
| Buffers | On Board Buffer |
| Galvanic Isolation | Yes |
| Error Frame Generation | No |
| Error Counters Reading | No |
| Silent Mode | Yes |
| Sound | No |
| Current Consumption |
Typical values are (@ 3.3V from Mini PCI Express slot): 180mA (Kvaser Mini PCI Express HS), 280mA (Kvaser Mini PCI Express 2xHS) |
- Supports a bitrate from 40 to 1,000 kbit/s and a CAN transfer rate up to 20,000 messages/s.
- Time stamp accuracy is 25 μs.
- Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other
- type) at the computer housing.
- A 4-pin Molex connector provides single CAN channel access.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
- Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download.
