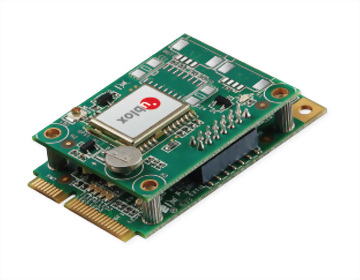

GADN CAN/GPS Module

GADN CAN/GPS Module

•Built-in u-blox NEO-M8 GPS Module
•Optional Untethered Dead Reckoning Technology
•Single Mini PCI Express Socket Services All Features
•Equips 2-Channel Individual CAN and 1-Channel J1708 Interfaces
•Sensor Integrated: 3D Gyroscope, 3D Accelerometer
ANTZER TECH’s GADN series are combo modules integrate FARO series and an extension GPS module. GADN series integrate CAN (CANbus 2.0 a/b, OBDII, J1939, J1708), 6 axis sensors, and GPS features all in one mini PCI-E slot.
Form Factor
  • Form Factor : Full PCI Express Mini Card with Extension Board
  • Host Interface :
    • USB 2.0 via PCI Express Mini Card Socket
    • UART via PCIE Express Mini Card Socket (by project)
CAN/Sensor
  • Interface Number
    • CAN (ISO 11898) x 2 Individual Channels
    • J1708 x 1
  • SDK Support :
    • 3D Gyroscope
    • 3D Accelerometer
  • CAN : CANbus 2.0 a/b, OBD-II (ISO 15765-4), J1939 and J1708
  • Identifier Filtering : Mask and Identifier List Mode
GPS
  • GPS Module : u-blox NEO-M8N/M8U
  • Receive Type :
    • 72-channel u-blox M8 engine
    • Concurrent reception of up to 3 GNSS (GPS, GLONASS, BeiDou)
  • Dead Reckoning : GADN-FSxU series available
  • Quick Hot Start : Support, Li-Coin Battery is Required
  • GPS Antenna : External
Software
  • Driver Support :
    • Microsoft Windows 7 / 10
    • Linux Kernel 2.6, 3.13, and 4.4
    • Linux Socket CAN
  • SDK Support :
    • Microsoft Windows 7 / 10
    • Linux by Project
Environment
  • Operating Temp :
    • -40°C ~ 85°C (without Li-Coin Battery)
    • -20°C ~ 60°C (with Li-Coin Battery)
  • Vibration Test : Pass 7.69G@ 20~2000Hz, compliant with MIL-STD-810G category 24
  • ESD Protection : 8kV Contact, 15kV air
  • Certification : CE, FCC Class B
Dimension
  • 50.9 x 30 x 13.2mm (L x W x H)
  • Built-in u-blox NEO-M8 GPS Module
  • Optional Untethered Dead Reckoning Technology
  • Single Mini PCI Express Socket Services All Features
  • Equips 2-Channel Individual CAN and 1-Channel J1708 Interfaces
  • Sensor Integrated: 3D Gyroscope, 3D Accelerometer
  • VehicleON™, FleetON™ and GpsON™ SDK for Quick System Integration
  • Vehicle Communication : CANbus 2.0 a/b, OBD-II, J1939 and J1708
