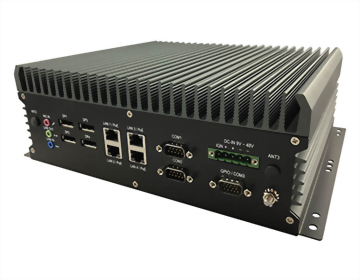

ABOX-5100G
AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x HDMI/ 4 x USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V AI GPU Computing
- AMD Ryzen™ Embedded V1000 Platform
- AMD Embedded Radeon™ E9260 GPU
- 8 x GPI, 4 x GPO and 2 x RS-232/422/485
- Dual Hot Swappable SATA Storage
- 9-48VDC Input and Operating Temp.: -40~60°C
- 8 x GbE LAN (Optional for 8 x PoE)
System
| CPU |
AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHz) |
|---|---|
| Memory | 2 x DDR4 2400 MHz SO-DIMM up to 32GB |
| Lan Chipset | Intel i210 |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
I/O
| Serial Port | 3 x RS-232/422/485 |
|---|---|
| USB Port | 4 x USB 3.0 Ports |
| LAN | 8 x RJ45 Ports for GbE (Optional for 8 x POE total 100W max.) |
| Video Port | 4 x DP, 4 x HDMI |
| DIO Port | 8 x GPI and 4 x GPO |
| Audio Port | 1 x Line-out, 1 x Line-in and 1 x Mic-in |
| Expansion bus | 3 x Full Mini-PCIe Slots and 1 x M.2 A-E Key 2230 Slot (2 x SIM Card Sockets for 3G/LTE) |
Graphics
| Graphics |
AMD Radeon™ E9260 GPU Support for OpenGL 4.5. and OpenCL™ 2.0. Support for Mantle and AMD LiquidVR™ Support for DirectX® 12 (Feature Level 12_0) features |
|---|---|
| Resolution | Max Resolution (HDMI 2.0b) : 5120x2880@60Hz |
Storage
| Type | 2 x 2.5" Drive Bay for SATA Type Hard Disk Drive / SSD |
|---|
Power Requirement
| Power Input | 9V -48V DC Power Input |
|---|---|
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Mangement | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery |
Internal Battery Kit for UPS (Optional) Patent No. : M447854 - Build-in Battery |
Mechanical & Environmental
| Dimension (LxWxH) | 260 x 226 x 95 mm |
|---|---|
| Mounting | Wall-mount |
| Weight | 5220g (bare-bone) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -40°C ~ 60°C * CPU configure at 25W |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, E13 |
| Patent No. (Taiwan) | M447854 |
