ABOX-5000

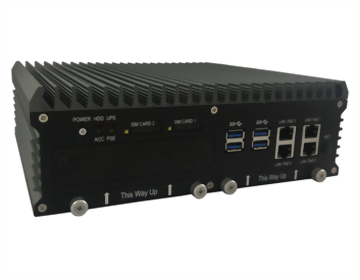

Fanless Embedded Computer with Intel 6th-Gen Skylake Core i7/i5/i3 CPU
• Intel 6th-Gen Quad Core i7 LGA1151 CPU
• 4 x RS-232/422/485 with 1.5KVrms isolated
• 8 x GPI and 4 x GPO with 1.5KVrms isolated
• 4 x GbE LAN (optional for 4 x PoE and additional 4 x GbE/PoE)
• Dual Hot Swappable SATA Storage
• 9-36VDC Input and Operating Temp.: -40 ~ 70ºC
• Fast Expansible Slot support PCI-E, USB, SMBus, GPIO and SATA
• Intel 6th-Gen Quad Core i7 LGA1151 CPU
• 4 x RS-232/422/485 with 1.5KVrms isolated
• 8 x GPI and 4 x GPO with 1.5KVrms isolated
• 4 x GbE LAN (optional for 4 x PoE and additional 4 x GbE/PoE)
• Dual Hot Swappable SATA Storage
• 9-36VDC Input and Operating Temp.: -40 ~ 70ºC
• Fast Expansible Slot support PCI-E, USB, SMBus, GPIO and SATA
The ABOX-5000 is powered by Intel 6th-Gen Skylake Core i7/i5/i3 CPU with 4 GbE/ 4 ISO COM/ 2 DP/ VGA/ 4 USB 3.0/ Fast Expansible Slot/ 9-36V Fanless Box Computer. ABOX-5000 is designed for multiple applications of industrial usage such us industrial control unit, mining machines and intelligent / automatic factory. In addition, the Fast Expansible Slot enhanced the expansible interfaces with mini PCIe slot, USB ports, SM Bus, GPIO Ports, PoE Ports and SATA slots. As for the power management, it has power protection with automatics recovery short circuit protection and vehicle power ignition for variety vehicle.
System
| CPU |
Intel Xeon Quad Core E3-1268L v5 (8M Cache 2.4GHz up to 3.4GHz) * Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz) Intel Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz) Intel Gen6 Core i3-6100TE (4M Cache 2.7GHz) *Use only with Intel C236 |
|---|---|
| Memory | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| Chipset | Intel® C236 / Q170 Platform Controller Hub |
| LAN Chipset |
3 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
I/O
| Serial Port | 4 x RS-232/422/485 w/1.5KVrms isolation (Auto Direction Control) |
|---|---|
| USB Port | 4 x USB 3.0 Ports |
| LAN | 4 x RJ45 Ports for GbE (Optional for 4 x POE 15.4W per port) |
| Video Port | 2 x Display Ports and 1 x VGA Port (Triple Independent Display) |
| DIO Port | 8 x GPI and 4 x GPO connector w/1.5KVrms isolation |
| Audio Port | 1 x Line-out and 1 x Mic-in (Line-in Optional) |
| Expansion bus | 3 Full and 1 Half Mini-PCIe Slot (2 x SIM Card Sockets for 3G/LTE) |
| FES Expansion | PCI-E Bus, USB Bus, SM Bus, GPIO and SATA Bus (Customized for Customer without NRE charge) |
Storage
| Type |
1 x 2.5" drive bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM |
|---|
Power Requirement
| Power Input | 9V -36V DC Power Input |
|---|---|
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Mangement | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery |
Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
Mechanical & Environmental
| Dimension (LxWxH) | 240 x 226 x 79 mm |
|---|---|
| Mounting | Wall-mount |
| Weight | 3860g (bare-bone) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -40ºC ~ 70°C (Default CPU 35 Watt) |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, E13 |
| Patent No. (Taiwan) | M447854, M448011 |
