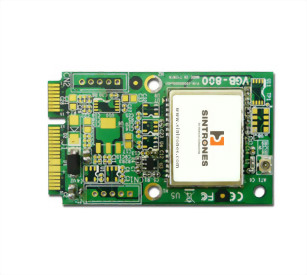

VDB-810G

Embedded u-blox M8 GPS with G-Sensor Mini PCIe Card

Concurrent Reception of GPS/QZSS, GLONASS, BeiDou
72-channel u-blox M8 Engine w/ Over 2 Million Effective Correlators
-167dBm SuperSense® Acquisition & Tracking Sensitivity
10 Hz Position Update Rate
Standard Mini PCIe V1.2 Full-Mini Card(USB2.0 Interface)
Time To First Fix (TTFF): <1 sec
Operating Temp. : -40ºC to 85ºC

Receiver Type

Chipset

u-blox M8

Receiver Type

GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A, GLONASS L1OF, BeiDou B1

Channels

Supports 72 Channels

Sensitivity

Tracking & Navigation

-167dBm

Acquisition

-160dBm

Cold Start(Autonomous)

-148dBm

Time to First Fix (TTFF)

Cold Start

26 sec

Warm Start

26 sec

Hot Start

1 sec

Aided Start

2 sec

Accuracy

Horizontal Position

Autonomous : <2.5m CEP, SBAS : <2.0m CEP

Accuracy of Timepulse Signal

RMS 30ns

Max Navigation

99% <60ns

Update Rate

10Hz (GPS&GLONASS), 18Hz (GPS)

Output Message Format

GPS Protocol

NMEA 0183 V4.0, UBX, RTCM2.3

Dynamic Conditions

Velocity

<500 m/s (972 knots)

Acceleration

<= 4g

Multipath Suppression

Type

Intelligent Multipath Detection and Suppression

G-Sensor

Type

3-axis accelerometer

A-GPS

Type

Supports AssistNow® Online and Offline, OMA SUPL Compliant

Environmental

Operating Temp.

-40ºC to +85ºC

Storage Temp.

-40ºC to +85º

Peak Supply Current

Max = 150mA

Max Performance

Acquisition = 74mA

Eco Mode

Tracking = 43mA

Power Input

3.3V +-10% VDC input

Dimensions

51 x 30 (mm)

Ordering Information

Part Number

VDB-810G-000

Description

Embedded u-blox M8 GPS with G-Sensor Mini PCIe Card

State of Origin

Taiwan
