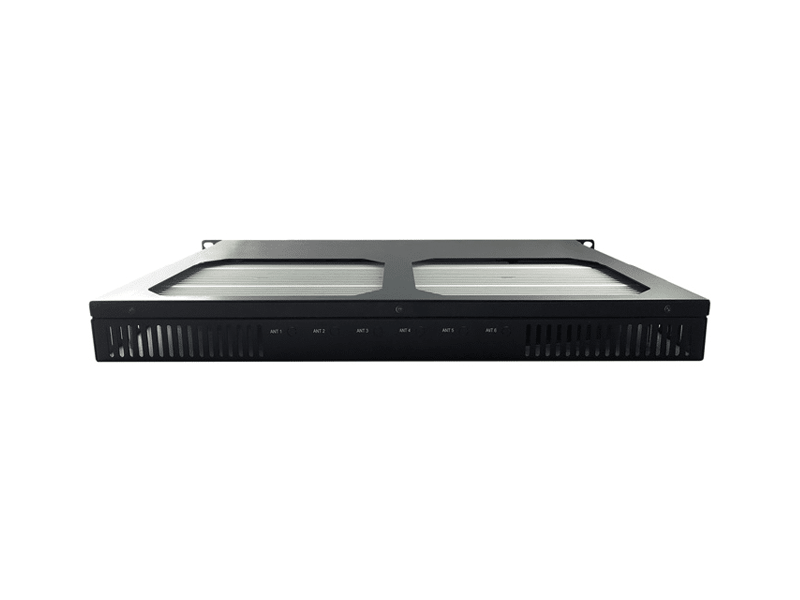

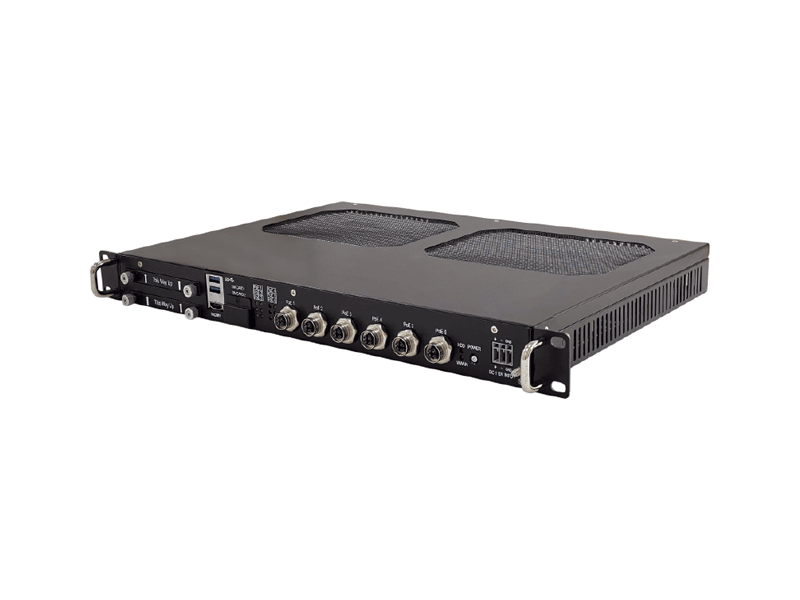

RBOX-1000-M12X
Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications
System
Processor |
Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz |
---|---|
Memory |
2 x SO-DIMM DDR4 up to 32GB |
Watchdog |
1 ~ 255 Level Reset |
Graphics
Graphics Engine |
Intel HD Graphics 520 |
---|---|
HDMI |
1 |
Resolution |
Up to 4096 x 2304@60 Hz |
Ethernet
Chipset |
6 x Intel I210AT |
---|---|
LAN |
6 x 10/100/1000 Mb/s w/ M12 X-code |
PoE |
Optional PoE total 90W max |
I/O
USB |
2 x USB 3.0 Ports |
---|---|
Expansion Bus |
2 x Mini-card slots (USB Bus only) |
Storage
Type |
2 x 2.5″ Drive Bay for SATA Type, RAID 0, 1, 5 |
---|---|
mSATA |
1 |
Expansion
Mini PCI Express |
2 x Mini-card slots (USB Bus only) |
---|---|
SIM Socket |
2, supported onboard with eject |
Power
Power Input |
77-137V DC Power Input with Isolation |
---|---|
Power Protection |
Meet EN50155 Class S2 |
Smart Ignition |
Automatics Recovery Short Circuit Protection Meet EN50155 Class S2 |
Mechanical
Dimension |
482 x 300 x 44 mm |
---|---|
Weight |
2500g |
Construction |
Aluminum Alloy |
Mounting |
1U 19″ Rack mount |
Environment
Relative Humidity |
10% RH – 90% RH (non-condensing) |
---|---|
Operating Temp. |
-40°C ~ 70°C EN50155 Tx |
Storage Temp. |
-40°C ~ 85°C |
Vibration & Shock |
EN50155, EN61373 |
Certification
Certification |
EN50155, EN50121-1, EN50121-3-2, EN45545-2 |
---|
Ordering Information
Mode Number |
RBOX-1000-M12X-i7 |
---|---|
Description |
Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications |
State of Origin |
Taiwan |
